WSD30L88DN56 - Dual P-Channel MOSFET

Name: WSD30L88DN56
SKU: WSD30L88DN56-1582434

Winsok

📥 Download Datasheet

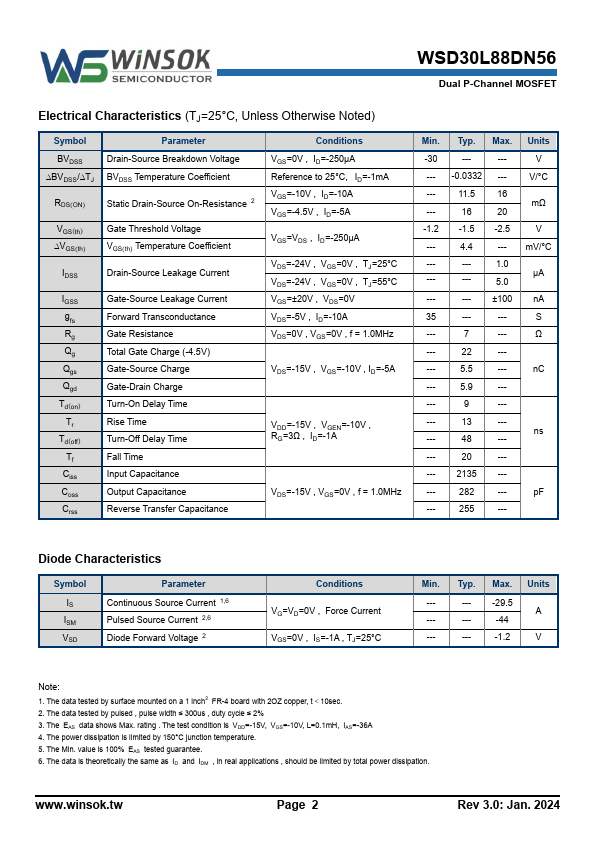

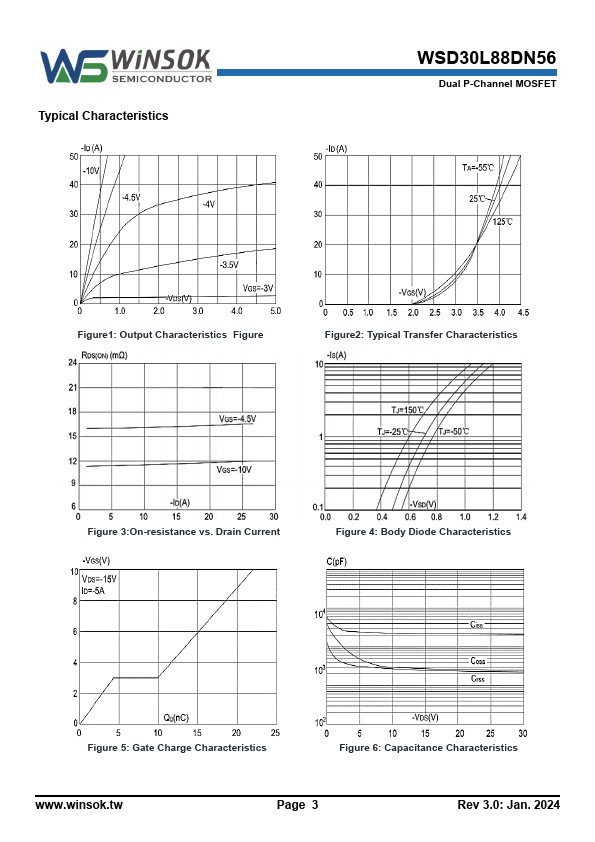

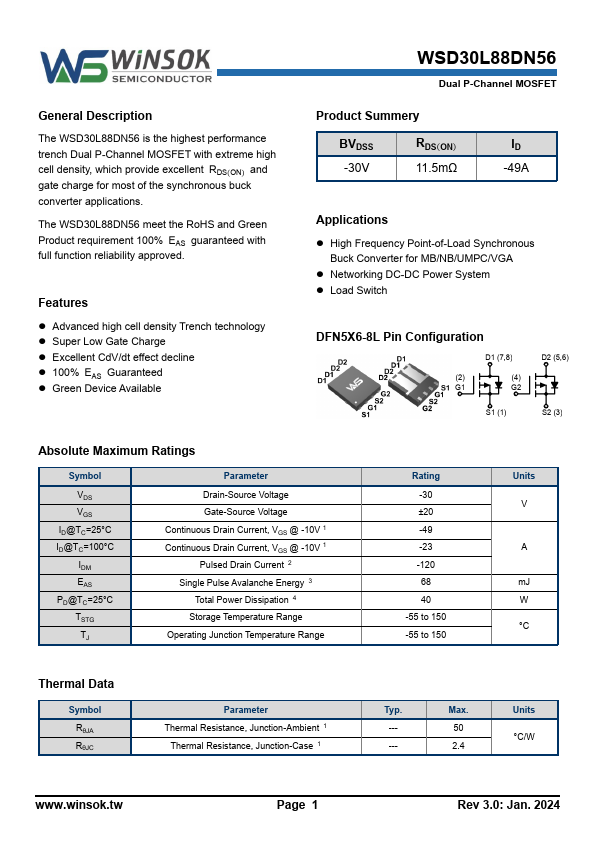

WSD30L88DN56 Datasheet Preview — Preview of WSD30L88DN56 PDF

Datasheet Details

Part number	WSD30L88DN56
Manufacturer	Winsok
File Size	947.13 KB
Description	Dual P-Channel MOSFET
Datasheet	WSD30L88DN56-Winsok.pdf

WSD30L88DN56 Product details

Description

The WSD30L88DN56 is the highest performance trench Dual P-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
100% EAS Guaranteed.
Green Device Available WSD30L88DN56 Dual P-Channel MOSFET Product Summery BVDSS -30V RDS(ON) 11.5mΩ ID -49A.
