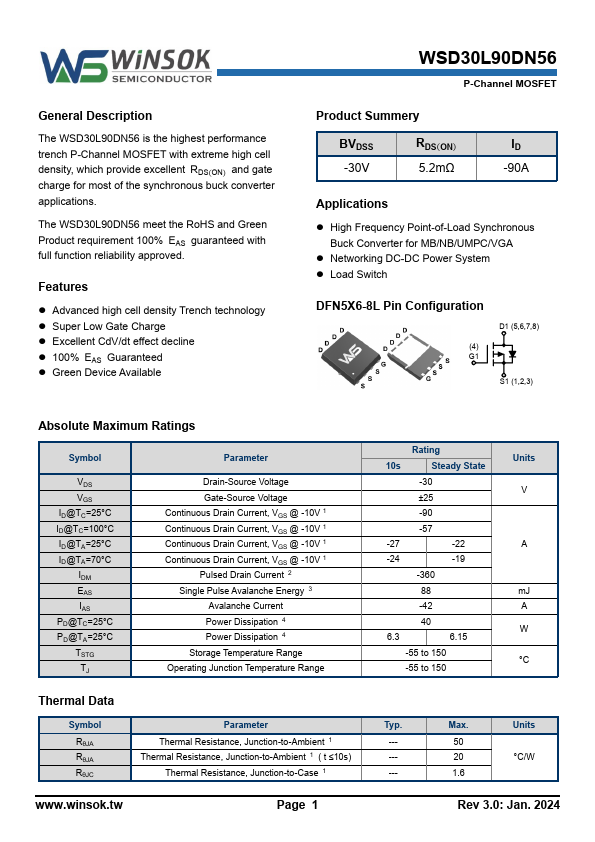

WSD30L90DN56
Description
The WSD30L90DN56 is the highest performance trench P-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.
The WSD30L90DN56 meet the Ro HS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
Features
- Advanced high cell density Trench technology
- Super Low Gate Charge
- Excellent Cd V/dt effect decline
- 100% EAS Guaranteed
- Green Device Available
P-Channel MOSFET
Product Summery
BVDSS -30V
RDS(ON) 5.2mΩ
ID -90A
Applications
- High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA
- Networking DC-DC Power System
- Load Switch
DFN5X6-8L Pin Configuration
D1 (5,6,7,8) (4) G1
S1 (1,2,3)
Absolute Maximum Ratings
Symbol
VDS VGS ID@TC=25°C ID@TC=100°C ID@TA=25°C ID@TA=70°C IDM EAS IAS PD@TC=25°C PD@TA=25°C TSTG TJ
Parameter
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ -10V 1...
