WSK250N03 - N-Ch MOSFET

Winsok

WSK250N03 Datasheet Preview — Preview of WSK250N03 PDF

Datasheet Details

Part number	WSK250N03
Manufacturer	Winsok
File Size	2.46 MB
Description	N-Ch MOSFET
Datasheet	WSK250N03-Winsok.pdf

WSK250N03 Product details

Description

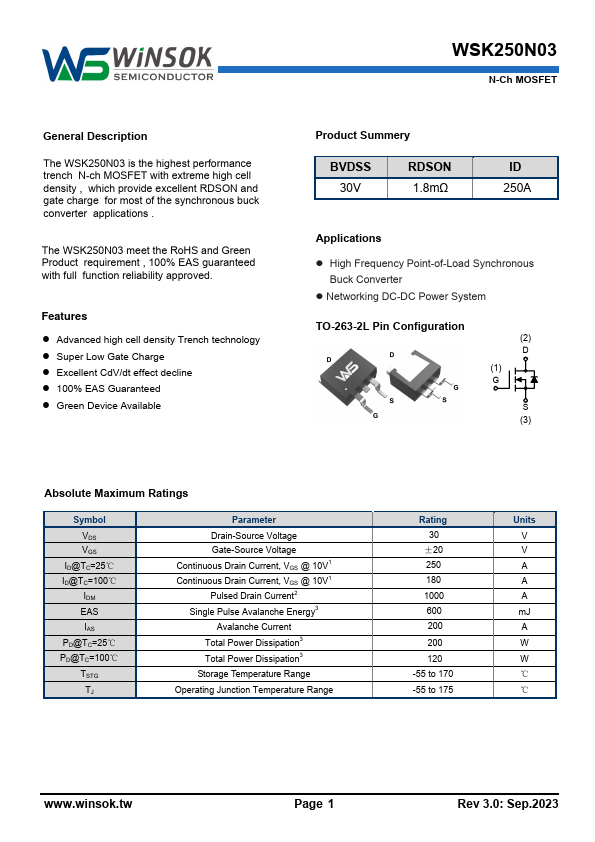

The WSK250N03 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available WSK250N03 N-Ch MOSFET Product Summery BVDSS 30V RDSON 1.8mΩ ID 250A.
