WSM300N04G Datasheet - Winsok

WSM300N04G N-Ch MOSFET

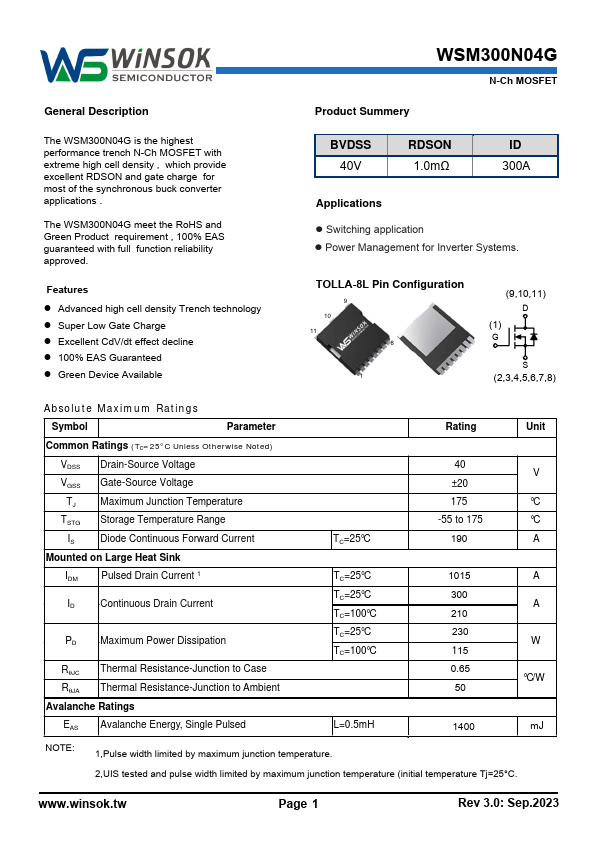

Product Summery The WSM300N04G is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSM300N04G meet the RoHS and Green Product requirement , 100% EAS guaranteed wit.

WSM300N04G Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available BVDSS 40V RDSON 1.0mΩ ID 300A Applications z Switching application z Power Management for Inverter Systems. TOLLA-8L Pin Configuration 9 10 11

WSM300N04G-Winsok.pdf

Preview of WSM300N04G PDF

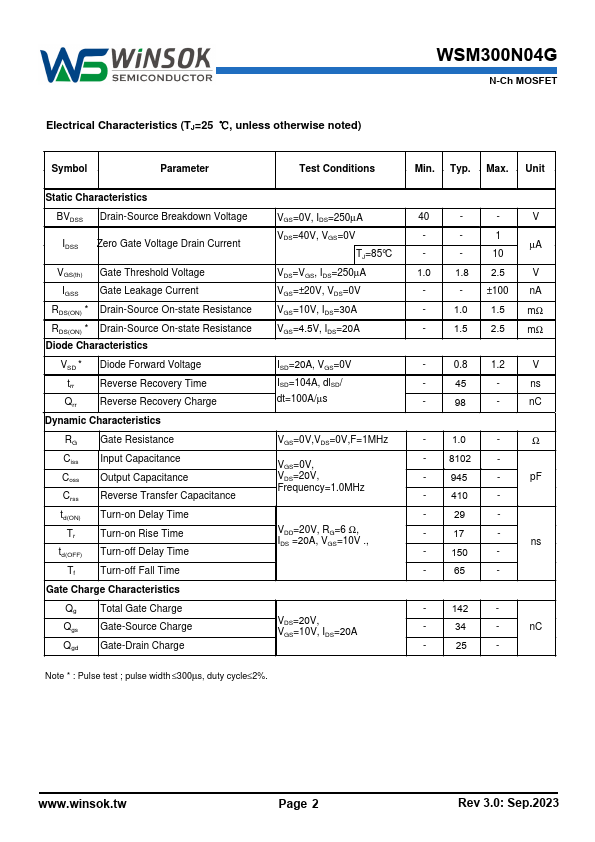

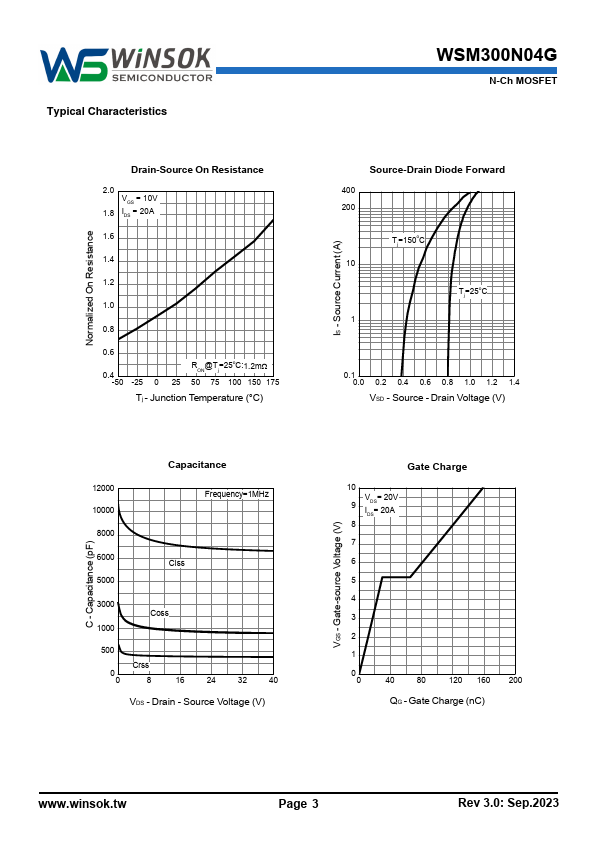

WSM300N04G Datasheet Preview Page 2 WSM300N04G Datasheet Preview Page 3

Datasheet Details

Part number:

WSM300N04G

Manufacturer:

Winsok

File Size:

1.53 MB

Description:

N-ch mosfet.
