WSP08N10G - N-Ch MOSFET

Winsok

WSP08N10G Datasheet Preview — Preview of WSP08N10G PDF

Datasheet Details

Part number	WSP08N10G
Manufacturer	Winsok
File Size	1.98 MB
Description	N-Ch MOSFET
Datasheet	WSP08N10G-Winsok.pdf

WSP08N10G Product details

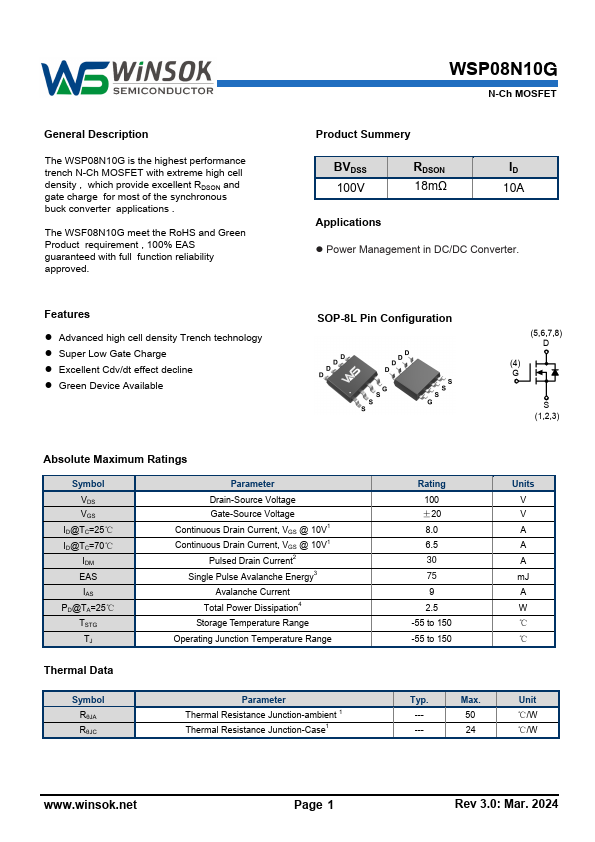

Description

The WSP08N10G is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available SOP-8L Pin Configuration (5,6,7,8) D (4) G S (1,2,3) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=70℃ IDM EAS IAS PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ 10V1 Continuous Drain Current, VGS @ 10V1 Pulsed Drain Current2 Single Pulse Avalanche Energy3 Avalanche Current Total Power Dissipation4 S.
