WSP9926 Datasheet - Winsok

WSP9926 Dual N-Channel MOSFET

The WSP9926 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WSP9926 meet the RoHS and Green Product requirement with full function reliability approved.

WSP9926 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available z ESD:2KV WSP9926 Dual N-Channel MOSFET Product Summery BVDSS 20V RDSON 22mΩ ID 7.2A Applications z High Frequency Point-of-Load Synchronous Small power switching f

WSP9926-Winsok.pdf

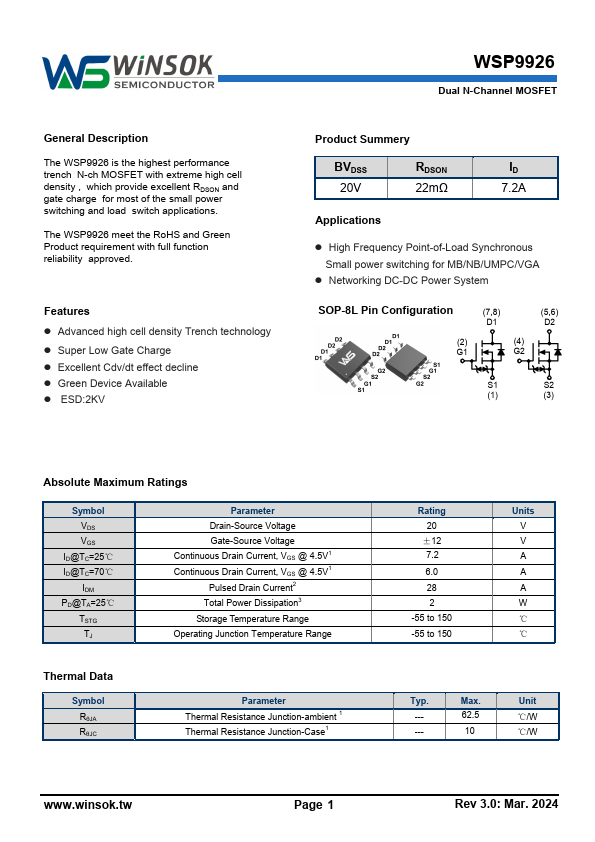

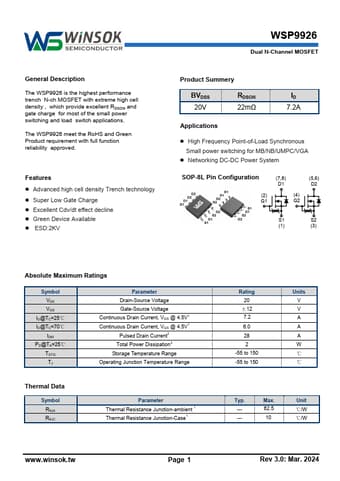

Preview of WSP9926 PDF

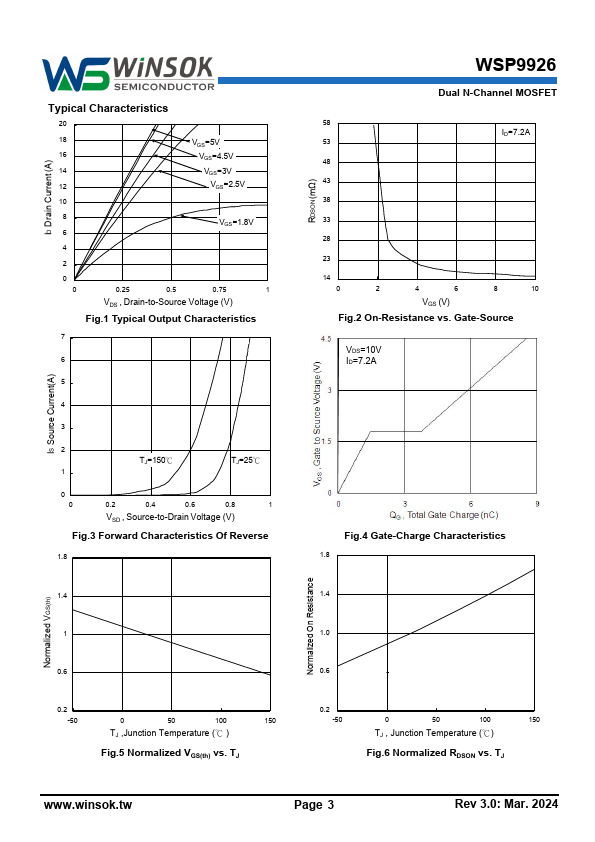

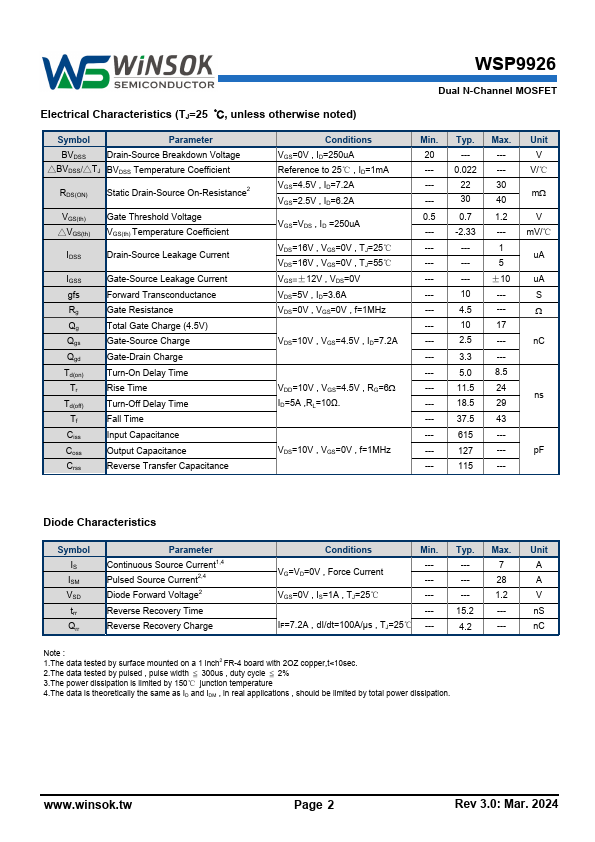

WSP9926 Datasheet Preview Page 2 WSP9926 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP9926

Manufacturer:

Winsok

File Size:

2.01 MB

Description:

Dual n-channel mosfet.
