DWCS2200 Datasheet - Winson

DWCS2200 AC / DC Sensing Current Sensor

DWCS2200 is a AC/DC current sensor with calibrated digital signal output. It applies exclusive digital signal collecting technique and allows for easy implementation without breaking original system. Typical applications include load detection and management, over-current fault detection and any in.

DWCS2200 Datasheet (652.63 KB)

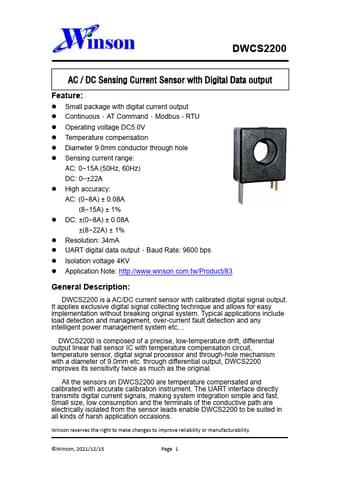

Preview of DWCS2200 PDF
DWCS2200 Datasheet Preview Page 2 DWCS2200 Datasheet Preview Page 3

Datasheet Details

Part number:

DWCS2200

Manufacturer:

Winson

File Size:

652.63 KB

Description:

Ac / dc sensing current sensor.
