WF43H Datasheet - Winstar

WF43H LCD

53.856(LCD A.A) 4.23 105.5±0.3(OUTLINE) 98.9±0.2(BezelV.A) 97.6 (LCD POL) 95.04(LCD A.A) WF43H TFT Graphic 480x272 dots 3.3 3.95 5.23 2.95±0.2 pull tape 2.3 56.4(LCD POL) 1.5 57.7±0.2(Bezel V.A) 67.2±0.5(OUTLINE) 25.2±1.0 36.042 (15) 44.05±0.8 1 40 AK OTA5180-C3 Kapton A: 1 COMPONENT (24.8) (15.65) 40 23.95±0.8 49.7 1.65MAX COMPONENT HEIGHT Contact Side 0.3±0.05 Stiffener Side 0.066 0.198 A: 3.5±0.3 0.198 RG B SCALE 1:100 0.5±0.1 0.35±0.00.515±0.05 P 0.5 39=19.5 20.

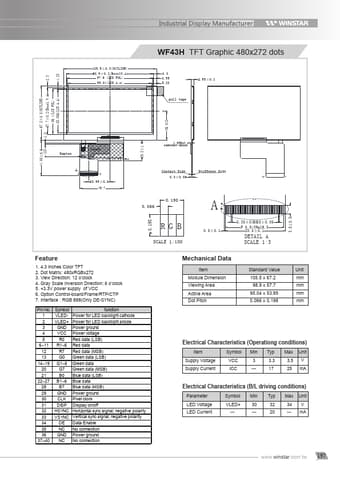

WF43H Datasheet (191.27 KB)

WF43H Datasheet Preview — Preview of WF43H PDF

Datasheet Details

Part number:

WF43H

Manufacturer:

Winstar

File Size:

191.27 KB

Description:

Lcd.
