WFF634

N-Channel MOSFET

WFF634 Datasheet (834.00 KB)

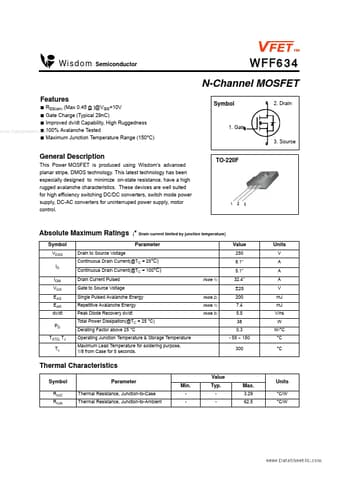

Preview of WFF634 PDF

Datasheet Details

Part number:

WFF634

Manufacturer:

Wisdom technologies

File Size:

834.00 KB

Description:

N-channel mosfet.

WFF634 Features

* RDS(on) (Max 0.45 Ω )@VGS=10V Symbol ◀ { 2. Drain Gate Charge (Typical 29nC)

* Improved dv/dt Capability, High Ruggedness

* 100% Avalanche Tested www.DataSheet4U.com

* Maximum Junction Temperature Range (150°C)

* 1. Gate { ▲

* { 3. Source General Desc

WFF634 General Description

This Power MOSFET is produced using Wisdom’s advanced planar stripe, DMOS technology. This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics. These devices are well suited for high efficiency switching DC/DC converters, switc.
