WAN-0143 ADA and MASK Timing on WM9712

Table 3 Delay Time Control (1) DEL 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 DELAY (AC-LINK FRAMES) DELAY (TIME) 1 20.8µs 2 41.7µs 4 83.3µs 8 167µs 16 333µs 32 667µs 48 1ms 64 1.33ms 96 2ms 128 2.67ms 160 3.33ms 192 4ms 224 4.67ms 256 5.33ms 288 6ms No dela.

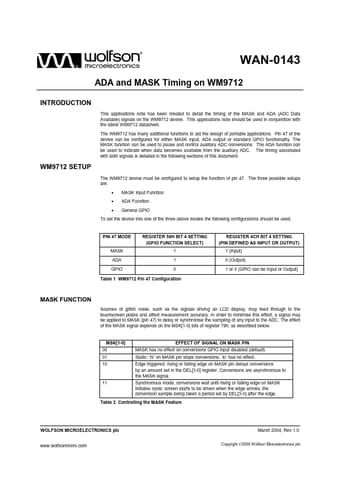

w INTRODUCTION WAN-0143 ADA and MASK Timing on WM9712 This applications note has been created to detail the timing of the MASK and ADA (ADC Data Available) signals on the WM9712 device. This applications note should be used in conjunction with the latest WM9712 datasheet. The WM9712 has many additional functions to aid the design of portable applications. Pin 47 of the device can be configured for either MASK input, ADA output or standard GPIO functionality. The MASK function can be used to p.
