WM5615

10-Bit Digital-to-Analogue Converter

WM5615 Features

* 10-bit CMOS voltage output DAC in an 8-terminal package 5V single supply operation 3-wire serial interface High-impedance reference input Maximum voltage output twice reference input voltage

WM5615 General Description

The WM5615 is a 10-bit voltage output digital-toanalogue converter (DAC) with a buffered reference input (high impedance). The DAC produces a maximum output voltage that is twice the reference voltage and the DAC is monotonic. The device is simple to use, running from a single supply of 5V. A power-.

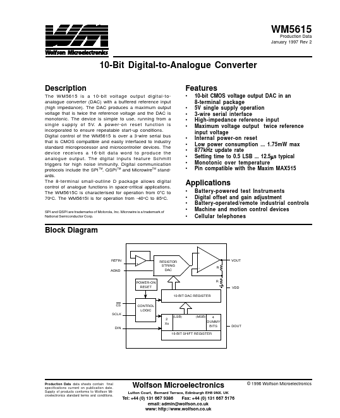

WM5615 Datasheet (117.53 KB)

Preview of WM5615 PDF

Datasheet Details

Part number:

WM5615

Manufacturer:

Wolfson Microelectronics plc

File Size:

117.53 KB

Description:

10-bit digital-to-analogue converter.
