WM8726 Datasheet - Wolfson Microelectronics plc

24-bit 192kHz Stereo DAC

WM8726 Features

* Stereo DAC Audio Performance 97 dB SNR (‘A’ weighted @ 48kHz) -89 dB THD DAC Sampling Frequency: 8kHz

* 192kHz Pin Selectable Audio Data Interface Format I2S, 16-bit Right Justified or DSP 3.0V - 5.5V Supply Operation 14-lead SOIC Package Pin Compatible with WM8725

WM8726 General Description

The WM8726 is a high performance stereo DAC designed for audio applications such as DVD, home theatre systems, and digital TV. The WM8726 supports data input word lengths from 16 to 24-bits and sampling rates up to 192kHz. The WM8726 consists of a serial interface port, digital interpolation filters.

WM8726 Datasheet (210.22 KB)

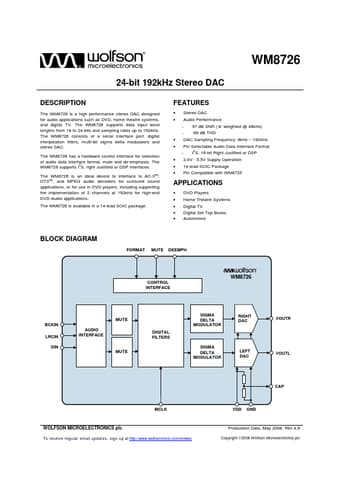

WM8726 Datasheet Preview — Preview of WM8726 PDF

Datasheet Details

Part number:

WM8726

Manufacturer:

Wolfson Microelectronics plc

File Size:

210.22 KB

Description:

24-bit 192khz stereo dac.
