WM8740 Datasheet - Wolfson Microelectronics plc

24-bit/ High Performance 192kHz Stereo DAC

WM8740 Features

* including onchip mute, attenuation and phase reversal. A hardware controllable interface is also available. FEATURES

* 120dB SNR (‘A’ weighted mono @48kHz), THD+N: -104dB @ FS

* 117dB SNR (‘A’ weighted stereo @48kHz), THD+N: -104dB @ FS

* Sampling frequency: 8kHz to 192kHz

WM8740 General Description

The WM8740 is a very high performance stereo DAC designed for audio applications such as CD, DVD, home theatre systems, set top boxes and digital TV. The WM8740 supports data input word lengths from 16 to 24-bits and sampling rates up to 192kHz. The WM8740 consists of a serial interface port, digita.

WM8740 Datasheet (494.77 KB)

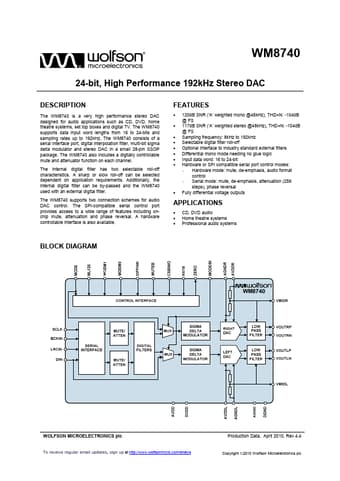

WM8740 Datasheet Preview — Preview of WM8740 PDF

Datasheet Details

Part number:

WM8740

Manufacturer:

Wolfson Microelectronics plc

File Size:

494.77 KB

Description:

24-bit/ high performance 192khz stereo dac.
