WM8200-10 40MSPS ADC

The WM8200 is a CMOS high speed, low power, pipeline analogue-to-digital converter (ADC) with 10 or 12-bit output options. It also has an on-chip programmable gain amplifier (PGA), dc clamp circuit and internal voltage references. Conversion is controlled by a single clock input. The device has a hi.

WM8200-10 Features

* 10 or 12-bit resolution ADC

* 40MSPS conversion rate

* Programmable Gain Amplifier (PGA)

* Adjustable internal voltage references

* Built in clamp function (dc restore) with 10-bit DAC

* Wide Input Bandwidth - 900MHz

* Unsigned Binary or Two’

WM8200_WolfsonMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: WM8200-10, WM8200. Please refer to the document for exact specifications by model.

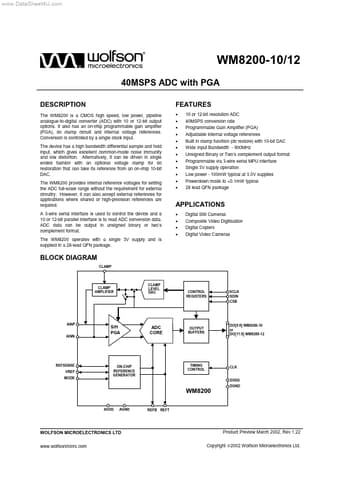

WM8200-10 Datasheet Preview Page 2 WM8200-10 Datasheet Preview Page 3
