WM9082 PDM Input Mono 3W Class D Speaker Driver

WM9082 Description

w WM9082 PDM Input Mono 3W Class D Speaker Driver .
The WM9082 is a high-performance sigma-delta Class D speaker driver.

WM9082 Features

* include a low-power mute state, and output slew-rate control. Short-circuit and thermal protection is provided. The WM9082 is supplied in a 9-ball 1.56 x 1.46mm CSP package, with 0.5mm ball pitch. FEATURES
* Sigma-Delta Class-D speaker driver - 92dB SNR - ‘A’ weighted - 2.5W into 4 (5V supply,

WM9082 Applications

* Mobile Handsets
* Portable Media Players (PMP)
* Notebooks / Laptop computers
* LCD televisions BLOCK DIAGRAM WOLFSON MICROELECTRONICS plc To receive regular email updates, sign up at http://www. wolfsonmicro. com/enews Production Data, August 2012, Rev 4.1 Copyright 2012 Wolfson

📥 Download Datasheet

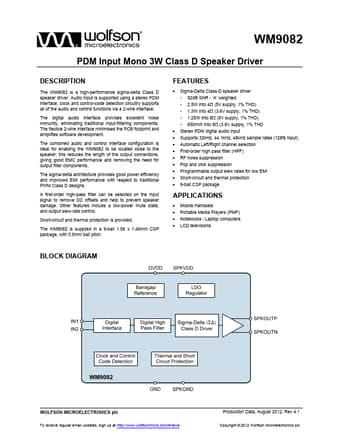

Preview of WM9082 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WM9082
Manufacturer
Wolfson Microelectronics
File Size
563.40 KB
Datasheet
WM9082-WolfsonMicroelectronics.pdf
Description
PDM Input Mono 3W Class D Speaker Driver
