CAS530M12BM3 Half-Bridge Module

CAS530M12BM3 Description

CAS530M12BM3, 5 CAS530M12BM3T 1200 V, 530 A, Silicon Carbide, Half-Bridge Module D Technical .

CAS530M12BM3 Features

* Industry Standard 62 mm Footprint
* Ultra Low Loss, High-Frequency Operation
* Zero Reverse Recovery from Diodes
* Zero Turn-off Tail Current from MOSFET
* Normally-off, Fail-safe Device Operation
* Copper Baseplate and Aluminum Nitride Insulator C

CAS530M12BM3 Applications

* Induction Heating
* Motor Drives
* Renewables
* Railway Auxiliary & Traction
* EV Fast Charging
* UPS and SMPS System Benefits 3
* 62 mm Form Factor Enables System Retrofit
* Increased System Efficiency, due to Low Switching & Cond

📥 Download Datasheet

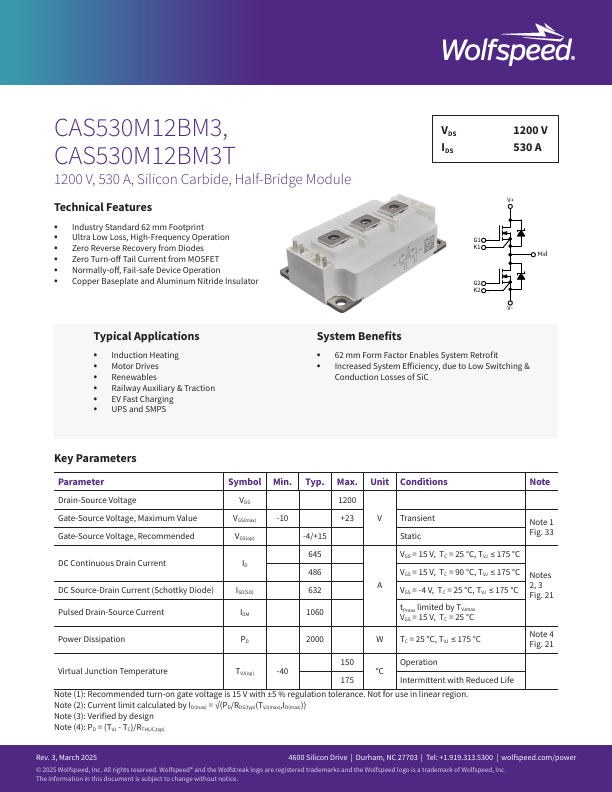

Preview of CAS530M12BM3 PDF

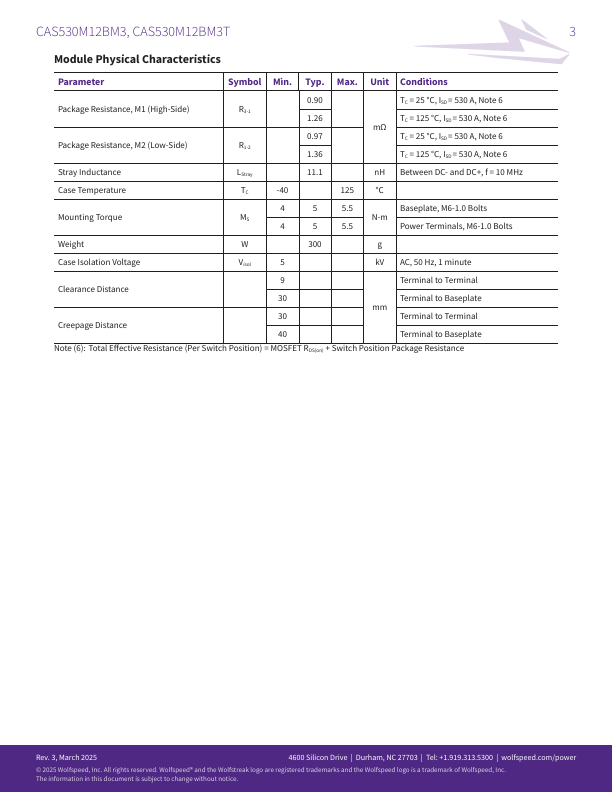

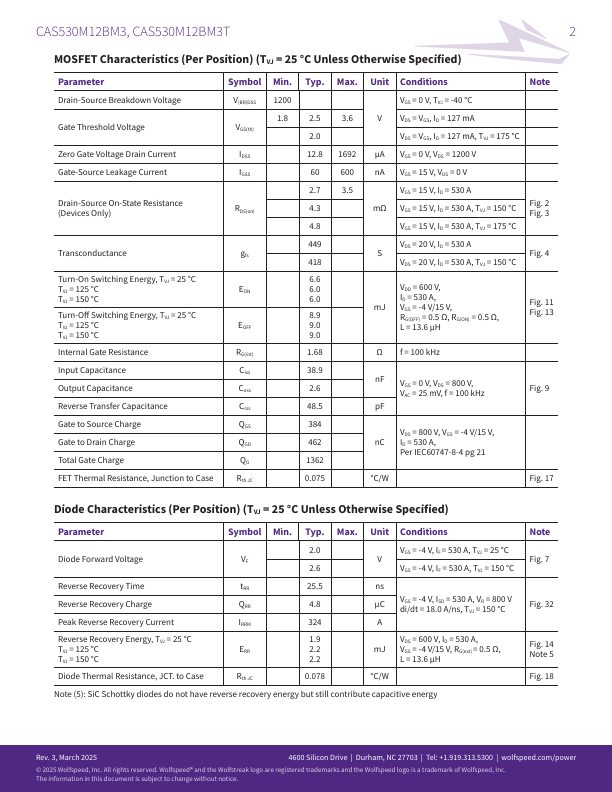

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAS530M12BM3
Manufacturer
Wolfspeed
File Size
3.39 MB
Datasheet
CAS530M12BM3-Wolfspeed.pdf
Description
Half-Bridge Module
