CCB016M12GM3T, CCB016M12GM3 - Silicon Carbide Six-Pack Module

Wolfspeed

📥 Download Datasheet

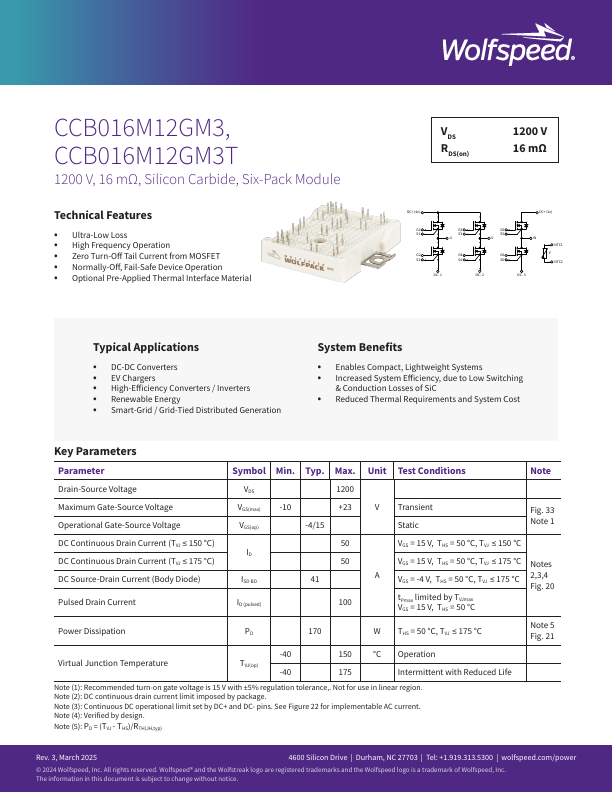

CCB016M12GM3T Datasheet Preview — This datasheet PDF includes multiple part numbers: CCB016M12GM3T, CCB016M12GM3. Please refer to the document for exact specifications by model.

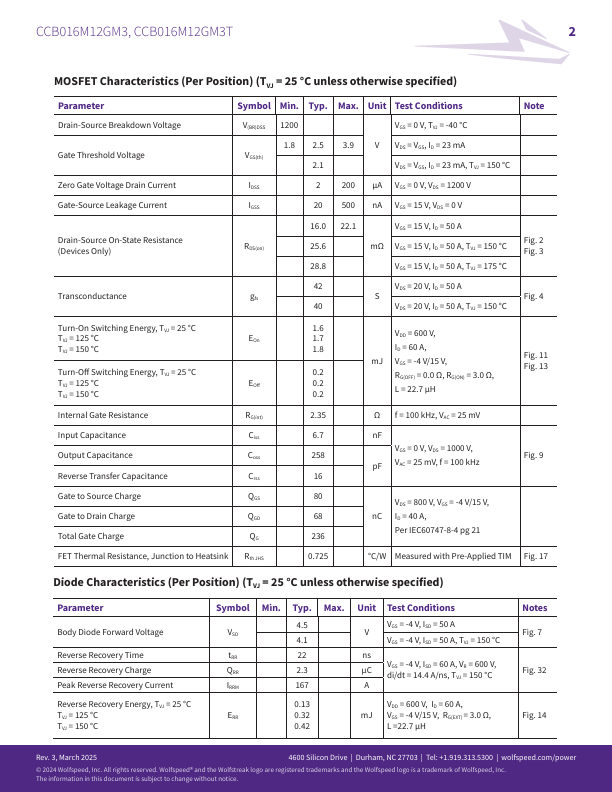

datasheet Preview Page 2

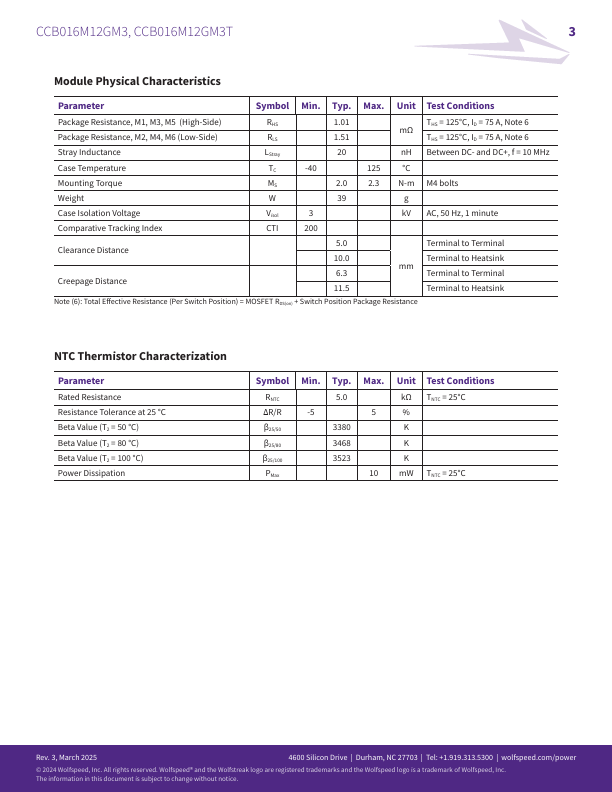

datasheet Preview Page 3

Datasheet Details

Part number	CCB016M12GM3T, CCB016M12GM3
Manufacturer	Wolfspeed
File Size	2.36 MB
Description	Silicon Carbide Six-Pack Module
Datasheet	CCB016M12GM3-Wolfspeed.pdf
Note	This datasheet PDF includes multiple part numbers: CCB016M12GM3T, CCB016M12GM3. Please refer to the document for exact specifications by model.

CCB016M12GM3T Product details

Features

Ultra-Low Loss.
High Frequency Operation.
Zero Turn-Off Tail Current from MOSFET.
Normally-Off, Fail-Safe Device Operation.
Optional Pre-Applied Thermal Interface Material 5 D VDS R4 DS(on) 3 1200 V 16 mΩ 2 1 D DC+ (4x) DC+ (2x) C C G1 G3 G5 S1 S3 S5 U V W NTC1 G2 G4 G6 S2 S4 S6 -t° NTC2 B B DC- 1 DC- 2 DC- 3 Typical.
