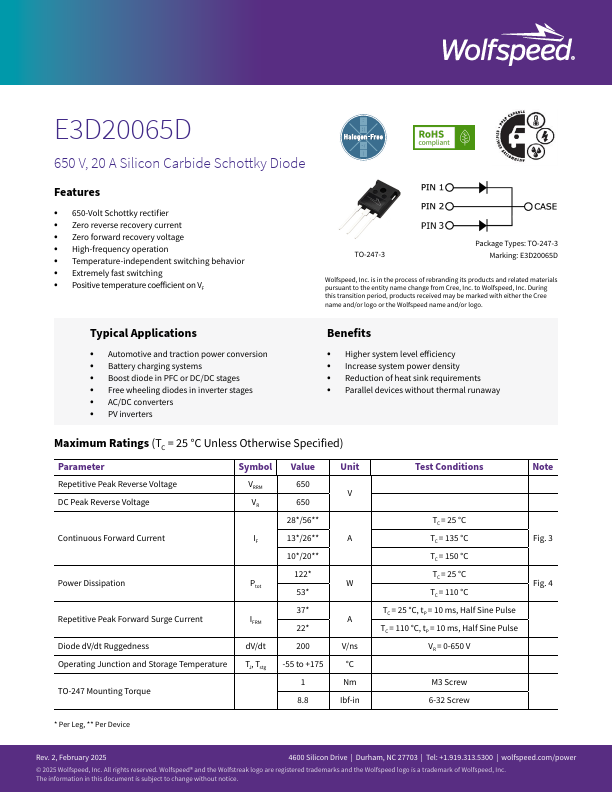

E3D20065D Datasheet - Wolfspeed

E3D20065D 650V 20A Silicon Carbide Schottky Diode

E3D20065D Features

* 650-Volt Schottky rectifier

* Zero reverse recovery current

* Zero forward recovery voltage

* High-frequency operation

* Temperature-independent switching behavior

* Extremely fast switching

* Positive temperature coefficient on VF TO-247-3

Datasheet Details

E3D20065D

Wolfspeed

585.16 KB

650v 20a silicon carbide schottky diode.
