WAS530M12BM3

Half-Bridge Module

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Wolfspeed WAS530M12BM3 MOSFET 2N-CH 1200V 630A DigiKey 4 1 units
$1000.14

WAS530M12BM3 Datasheet (3.37 MB)

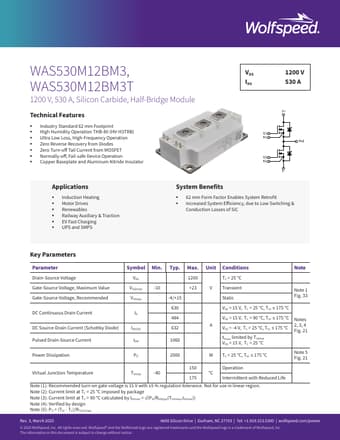

Preview of WAS530M12BM3 PDF

Datasheet Details

Part number:

WAS530M12BM3

Manufacturer:

Wolfspeed

File Size:

3.37 MB

Description:

Half-bridge module.

WAS530M12BM3 Features

* Industry Standard 62 mm Footprint

* High Humidity Operation THB-80 (HV-H3TRB)

* Ultra Low Loss, High-Frequency Operation

* Zero Reverse Recovery from Diodes

* Zero Turn-off Tail Current from MOSFET

* Normally-off, Fail-safe Device Operation
