DD3520S, DD3520-Won - 35A GLASS PASSIVATED AVALANCHE DISH TYPE PRESS-FIT DIODE

Won-Top Electronics

📥 Download Datasheet

DD3520S Datasheet Preview — This datasheet PDF includes multiple part numbers: DD3520S, DD3520-Won. Please refer to the document for exact specifications by model.

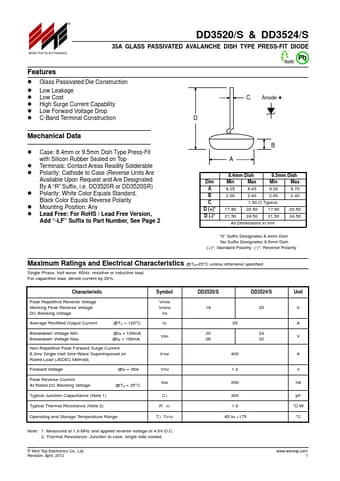

datasheet Preview Page 2

Datasheet Details

Part number	DD3520S, DD3520-Won
Manufacturer	Won-Top Electronics
File Size	27.31 KB
Description	35A GLASS PASSIVATED AVALANCHE DISH TYPE PRESS-FIT DIODE
Datasheet	DD3520-Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: DD3520S, DD3520-Won. Please refer to the document for exact specifications by model.

DD3520S Product details

Features

Glass Passivated Die Construction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Low Forward Voltage Drop.
C-Band Terminal Construction C Anode + D Mechanical Data.
Case: 8.4mm or 9.5mm Dish Type Press-Fit with Silicon Rubber Sealed on Top.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. DD3520R or DD3520SR).
Polarity: White Color.
