ED1004CS - 10A DPAK SURFACE MOUNT SUPER FAST RECTIFIER

Product Overview

Won-Top Electronics

Part number	ED1004CS
Manufacturer	Won-Top Electronics
File Size	48.12 KB
Description	10A DPAK SURFACE MOUNT SUPER FAST RECTIFIER
Datasheet	ED1004CS Datasheet
Note	This datasheet PDF includes multiple part numbers: ED1004CS, ED1002CS_Won. Please refer to the document for exact specifications by model.

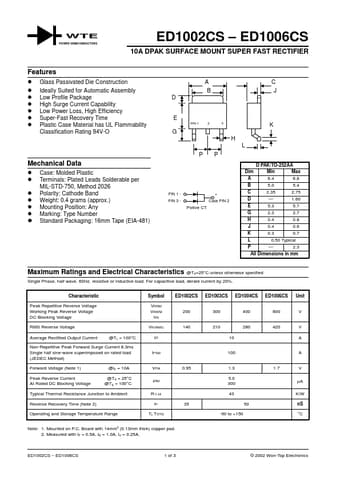

Additional preview pages of the ED1004CS datasheet.

! Glass Passivated Die Construction A ! Ideally Suited for Automatic Assembly ! Low Profile Package ! High Surge Current Capability ! Low Power Loss, High Efficiency ! Super-Fast Recovery Time ! Plastic Case Material has UL Flammability B D E PIN 1 2 3 Classification Rating 94V-O G H L C J K PP Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-750, Method 2026 ! Polarity.
