GBJ2A, GBJ2A_Won (GBJ2x) 2.0A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

GBJ2A Description

WTE POWER SEMICONDUCTORS GBJ2A * GBJ2M Pb 2.0A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER .

GBJ2A Features

* ! Glass Passivated Die Construction A GBL Dim Min Max 20.7 20.9 A 10.4 10.7 B 3.25 3.56 C 17.3 18.2 D 1.50 2.03 E 2.03 2.41 G 3.17 x 45° H 1.02 1.27 J 1.27 1.53 K 0.46 0.56 L 4.8 5.3 P All Dimensions in mm ! Low Forward Voltage Drop ! High Current Capability H ! High Reliability ! High Surge Curren

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ2A, GBJ2A_Won. Please refer to the document for exact specifications by model.

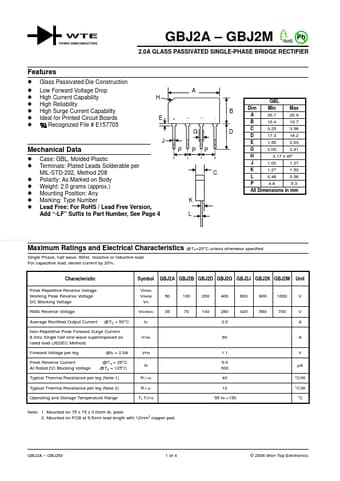

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBJ2A, GBJ2A_Won
Manufacturer
Won-Top Electronics
File Size
86.71 KB
Datasheet
GBJ2A_Won-TopElectronics.pdf
Description
(GBJ2x) 2.0A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBJ2A, GBJ2A_Won.
Please refer to the document for exact specifications by model.
