GBPC1001S - 10A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

This page provides the datasheet information for the GBPC1001S, a member of the GBPC10S_Won 10A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C.
  • 21.00 D.
  • 25.00 E 5.10.
  • G 1.20 Ø Typical H 3.05 3.60 J 5.08 Ø Nominal All Dimensions in mm - ~ ~ + Mechanical Data Case: KBPC-S, Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation Terminals: Plated Lead.

📥 Download Datasheet

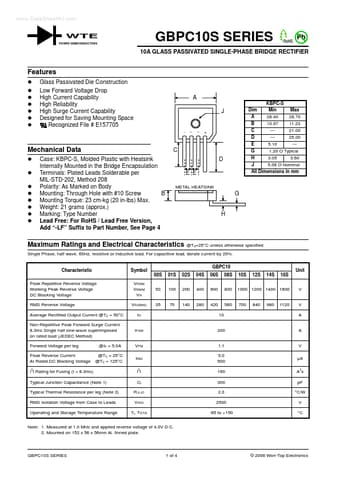

Datasheet preview – GBPC1001S
