GBPC3501S, GBPC35S_Won, 35A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

www.DataSheet4U.com WTE POWER SEMICONDUCTORS GBPC35S SERIES Pb 35A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER .

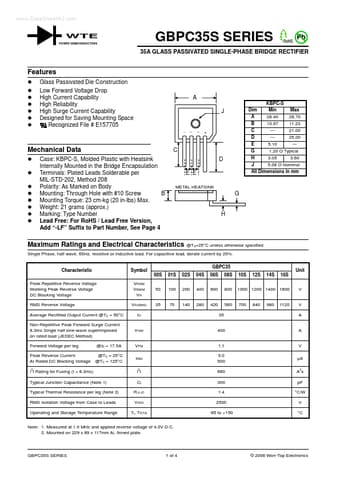

datasheet Preview Page 1 from Datasheet4u.com

GBPC35S_Won-TopElectronics.pdf

GBPC3501S Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC3501S, GBPC35S_Won. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC3501S, GBPC35S_Won

Manufacturer:

Won-Top Electronics

File Size:

95.17 KB

Description:

35A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: GBPC3501S, GBPC35S_Won.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C
* 21.00 D
* 25.00 E 5.10
* G 1.2
