H30D05C, H30D05C_Won - 30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER

Won-Top Electronics

The H30D05C by Won-Top Electronics is a 30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

H30D05C 30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER by Won-Top Electronics - Datasheet Preview — Official preview page of the H30D05C 30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER datasheet (Won-Top Electronics).

Datasheet Details

Part number	H30D05C, H30D05C_Won
Manufacturer	Won-Top Electronics
File Size	76.14 KB
Description	30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER
Datasheet	H30D05C_Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: H30D05C, H30D05C_Won. Please refer to the document for exact specifications by model.

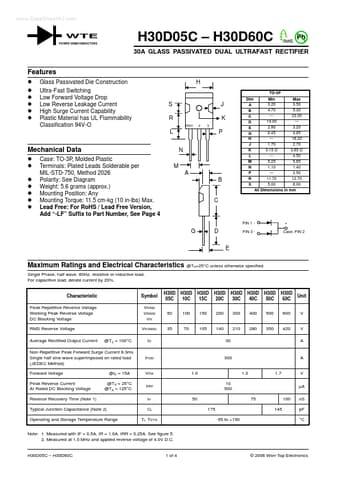

Additional preview pages of the H30D05C datasheet.

H30D05C Product details

Features

! ! ! ! ! ! Glass Passivated Die Construction Ultra-Fast Switching Low Forward Voltage Drop Low Reverse Leakage Current S High Surge Current Capability Plastic Material has UL Flammability R Classification 94V-O L N M A B H Dim A B C D E G H J K L M N P R S TO-3P Min Max 3.20 3.50 4.70 5.30.
23.00 19.00.
2.80 3.20 0.45 0.85.
16.20 1.70 2.70 3.15 Ø 3.65 Ø.
4.50 5.25 5.65 1.10 1.40.
2.50 11.70 12.70 5.00 6.00.
