P4KE68

The P4KE68 is 400W TRANSIENT VOLTAGE SUPPRESSOR designed by Won-Top Electronics.

Product Overview

Won-Top Electronics

📥 Download Datasheet

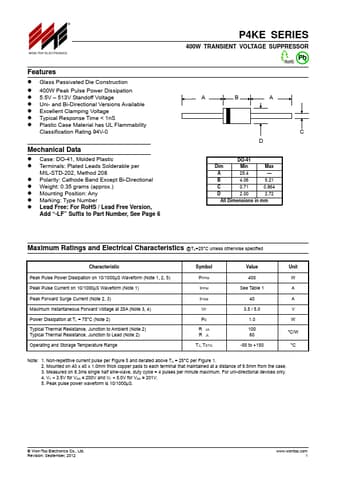

P4KE68 400W TRANSIENT VOLTAGE SUPPRESSOR by Won-Top Electronics - Datasheet Preview — Datasheet preview – P4KE68

Datasheet Details

Part number	P4KE68, P4KE6.8-Won
Manufacturer	Won-Top Electronics
File Size	96.87 KB
Description	400W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P4KE6.8-Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: P4KE68, P4KE6.8-Won. Please refer to the document for exact specifications by model.
Additional preview pages of the P4KE68 datasheet.

Product details

Features

Glass Passivated Die Construction.
400W Peak Pulse Power Dissipation.
5.5V.
513V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: DO-41, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight: 0.
