SB10150CT, SB10150CT_Won - HIGH VOLTAGE DUAL SCHOTTKY BARRIER RECTIFIER

Won-Top Electronics

Datasheet Details

Part number	SB10150CT, SB10150CT_Won
Manufacturer	Won-Top Electronics
File Size	72.68 KB
Description	HIGH VOLTAGE DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB10150CT_Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SB10150CT, SB10150CT_Won. Please refer to the document for exact specifications by model.

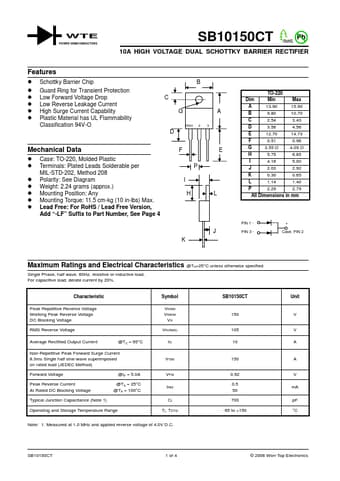

! ! ! ! ! ! Schottky Barrier Chip Guard Ring for Transient Protection Low Forward Voltage Drop C Low Reverse Leakage Current High Surge Current Capability G Plastic Material has UL Flammability Classification 94V-O D F P I H L B TO-220 Dim Min Max 13.90 15.90 A 9.80 10.70 B 2.54 3.43 C 3.56 4.56 D 12.70 14.73 E 0.51 0.96 F 3.55 Ø 4.09 Ø G 5.75 6.85 H 4.16 5.00 I 2.03 2.92 J 0.30 0.65 K 1.14 1.40 L 2.29 2.79 P All Dimensions in mm A PIN1 2 3 Mechanic.
