SB2035PT - 20A SCHOTTKY BARRIER RECTIFIER

Product Overview

Won-Top Electronics

Part number	SB2035PT
Manufacturer	Won-Top Electronics
File Size	33.61 KB
Description	20A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB2035PT Datasheet
Note	This datasheet PDF includes multiple part numbers: SB2035PT, SB2035PT_Won. Please refer to the document for exact specifications by model.

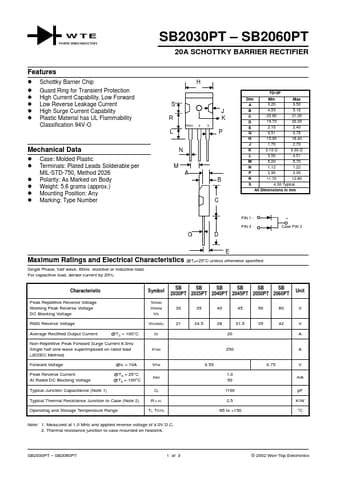

Additional preview pages of the SB2035PT datasheet.

! Schottky Barrier Chip ! Guard Ring for Transient Protection ! High Current Capability, Low Forward ! Low Reverse Leakage Current ! High Surge Current Capability ! Plastic Material has UL Flammability Classification 94V-O Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-750, Method 2026 ! Polarity: As Marked on Body ! Weight: 5.6 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number H S J RK PIN1 2 3 LP N M A B C TO-3P Dim Min Max A 3.20.
