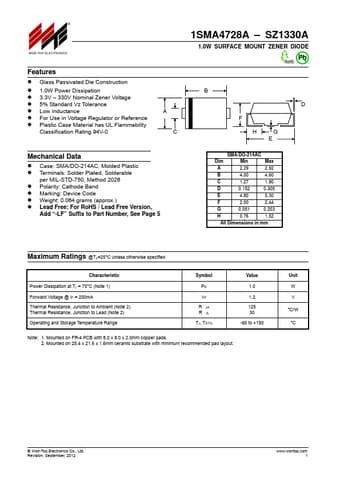

Part number:
SZ1250A
Manufacturer:
Won-Top
File Size:
88.19 KB
Description:
1.0w surface mount zener diode.
* Glass Passivated Die Construction
* 1.0W Power Dissipation
* 3.3V
* 330V Nominal Zener Voltage
* 5% Standard Vz Tolerance
* Low Inductance
* For Use in Voltage Regulator or Reference
* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C M
SZ1250A
Won-Top
88.19 KB
1.0w surface mount zener diode.
