SZ1300A - 1.0W SURFACE MOUNT ZENER DIODE

Product Overview

Won-Top

📥 Download Datasheet

SZ1300A 1.0W SURFACE MOUNT ZENER DIODE by Won-Top - Datasheet Preview — Datasheet preview – SZ1300A

Datasheet Details

Part number	SZ1300A
Manufacturer	Won-Top
File Size	88.19 KB
Description	1.0W SURFACE MOUNT ZENER DIODE
Datasheet	SZ1300A Datasheet
Note	This datasheet PDF includes multiple part numbers: SZ1300A, SZ1110A-Won. Please refer to the document for exact specifications by model.

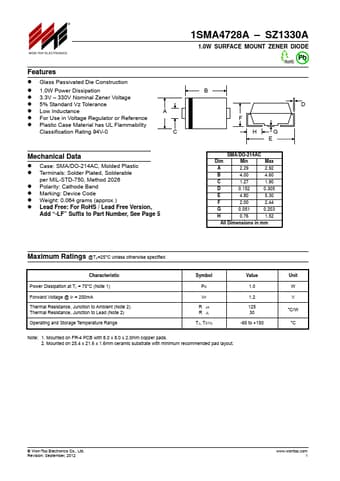

Additional preview pages of the SZ1300A datasheet.

Product details

Features

Glass Passivated Die Construction.
1.0W Power Dissipation.
3.3V.
330V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance.
For Use in Voltage Regulator or Reference.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C Mechanical Data.
Case: SMA/DO-214AC, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band.
Marking: Device Code.
Weight: 0.
