WS2801

3-Channel Constant Current LED Driver

WS2801 Features

*   Applications

* Supports both constant voltage and constant current drive mode

* Programmable constant LED drive current

* Wide constant output current range 5~150mA

* Build in PWM dimming scheme for each output channel, supports free-run, especially suitable for low

WS2801 General Description

The WS2801 is a constant current LED driver. It is designed for indoor/ outdoor LED displays and decorative LED lighting system. It is suitable for LED cascading applications. The WS2801ownes 3 output channels, each channel can drive a constant current up to 30mA. WS2081 contains serial shift regis.

WS2801 Datasheet (459.58 KB)

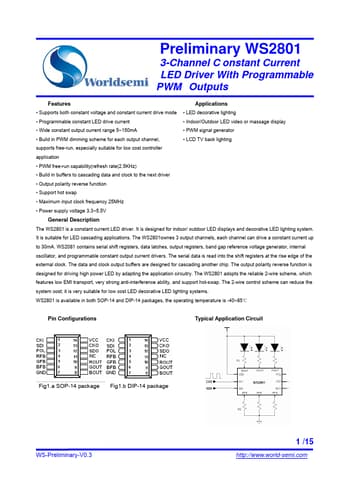

Preview of WS2801 PDF

Datasheet Details

Part number:

WS2801

Manufacturer:

Worldsemi

File Size:

459.58 KB

Description:

3-channel constant current led driver.
