YD7265 - 25W STEREO AMPLIFIER

YD7265 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD7265 25W STEREO AMPLIFIER WITH MUTE AND STAND-BY *YD7265 .
The YD7265 is class AB dual Audio power amplifier assembled in the Multiwatt package,specially designed for high quality sound application as Hi-Fi mu.

YD7265 Features

* WIDE SUPPLY VOLTAGE RANGE(UP TO ±25V ABS MAX. ).
* HIGH OUTPUTE POWER:25W(Vcc＝±20V， RL＝8Ω，THD=10%).
* NO POP AT TURN-ON/OFF.
* MUTE AND STAND-BY.
* SHORT CIRCUIT PROTECTION.
* THERMAL OVERLOAD PROTECTION. BLOCK DIAGRAM ST-BY/MUTE + +Vcc 3 ST/M 4 5 -Vcc 6 GND 7 8 9 10 + - -Vcc

📥 Download Datasheet

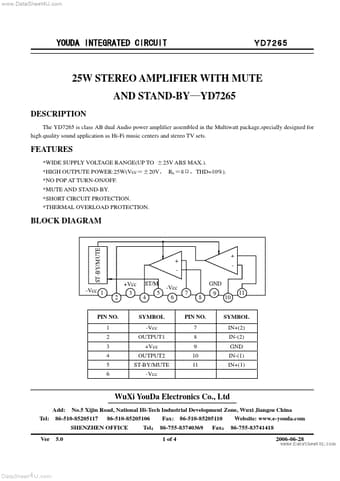

Preview of YD7265 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD7265
Manufacturer
Wuxi Youda electronics
File Size
224.36 KB
Datasheet
YD7265_WuxiYoudaelectronics.pdf
Description
25W STEREO AMPLIFIER
