AXP2101

Single Cell NVDC PMU

X-Powers

AXP2101 Features

* 3.9V

* 5.5V Input Operating Range and Support single Cell Battery

* Battery fuel gauge: E gauge 3.0

* Support TWSI(Two Wire Serial Interface) and RSB(Reduced Serial Bus)

* 100mA-1A Linear charger, CV accuracy +/-0.5%

* Single input to support USB input

* High battery

AXP2101 General Description

AXP2101 is a highly integrated power management IC(PMIC) targeting at single cell Li-battery(Li-ion or Li-polymer) applications that require multi-channel power conversion outputs. It provides an easy and flexible power management solution for multi-core processors to meet the complex and accura.

AXP2101 Datasheet (1.42 MB)

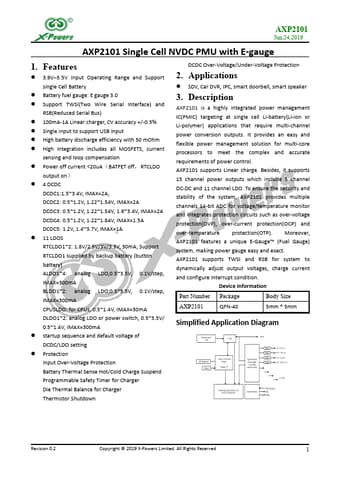

AXP2101 Datasheet Preview — Preview of AXP2101 PDF

Datasheet Details

Part number:

AXP2101

Manufacturer:

X-Powers

File Size:

1.42 MB

Description:

Single cell nvdc pmu.
