XD016B120AV1S3 N-CHANNEL SiC POWER MOSFET

Description

XD016B120AV1S3，XD016B120AV1S5 N-CHANNEL SiC POWER MOSFET .

📥 Download Datasheet

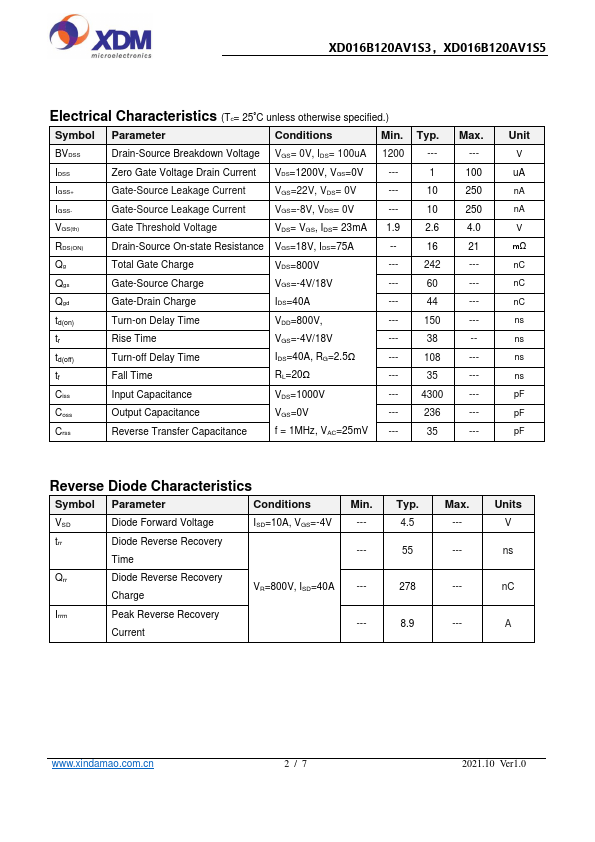

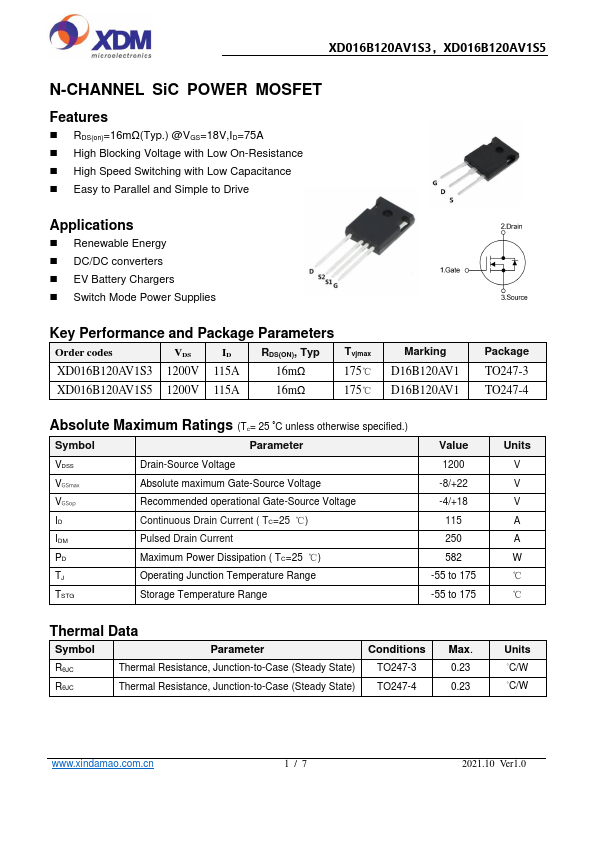

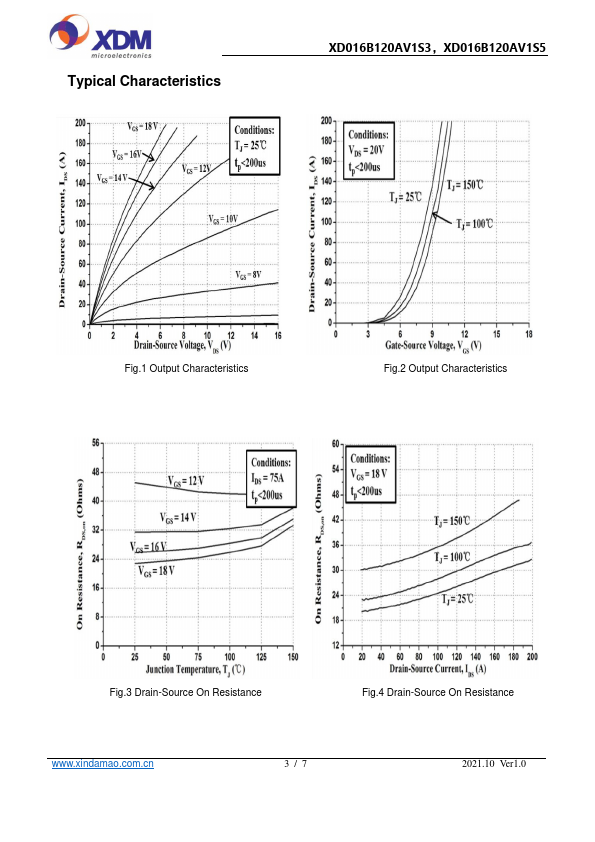

XD016B120AV1S3 Datasheet Preview — Preview of XD016B120AV1S3 PDF

Datasheet Specifications

Part number: XD016B120AV1S3
Manufacturer: XDM
File Size: 0.97 MB
Datasheet: XD016B120AV1S3-XDM.pdf
Description: N-CHANNEL SiC POWER MOSFET

Features

* RDS(on)=16mΩ(Typ. ) @VGS=18V,ID=75A
* High Blocking Voltage with Low On-Resistance
* High Speed Switching with Low Capacitance

Applications

* Renewable Energy
* DC/DC converters
* EV Battery Chargers
* Switch Mode Power Supplies Key Performance and Package Parameters Order codes VDS ID RDS(ON), Typ Tvjmax XD016B120AV1S3 1200V 115A 16mΩ 175℃ XD016B120AV1S5 1200V 115A 16mΩ 175℃ Marking D16B120AV1 D16B120AV1 P
