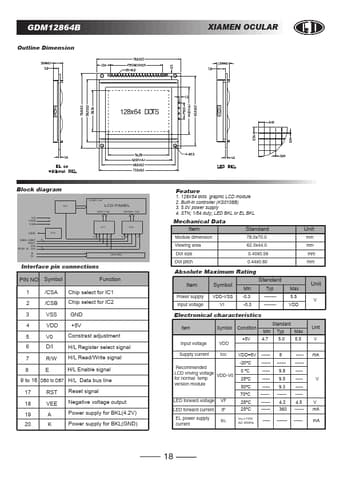

GDM12864B
Outline Dimension
XIAMEN OCULAR
128x64 D O TS
Block diagram
COM1~64 IC3
Feature
LCD PANEL
SEG1~64 SEG65~128
1. 128X64 dots graphic LCD module 2. Built-in controller (KS0108B) 3. 5.0V power supply 4. STN; 1/64 duty; LED BKL or EL BKL
V0 VDD VSS
IC1 IC2 IC4 5 8 3 5 8 3 8
Mechanical Data Item
Module dimension Viewing area
Standard
78.0x70.0 62.0x44.0 0.40x0.56 0.44x0.60
Unit
mm mm mm mm
VEE DB0~DB7 RST CS R/W E D/I A K
3 LED BKL
Dot size Dot pitch
Interface pin connections PIN NO 1 2 3 4 5 6 7 8 9 to 16 17 18 19 20 Symbol /CSA /CSB VSS VDD V0 D/I R/W E
DB0 to DB7
Absolute Maximum Rating Function Item Symbol
VDD-VSS VI
Standard
Min -0.3 -0.3 Typ --------------Max 5.
