XB431 Datasheet - XINLUDA

low-voltage 3-terminaladjustable voltage reference

XB431 Features

* 1 Low-Voltage Operation, VREF = 1.24 V

* Adjustable Output Voltage, VO = VREF to 6 V

* Reference Voltage Tolerances at 25°C

* 0.5% for XB431-TL

* 1% for XB431-TL

* 1.5% for XB431-TL

* Typical Temperature Drift

* 4 mV (0°C to 70°C)

XB431 General Description

The XB431 device is a low-voltage 3-terminaladjustable voltage reference withspecified thermalstability over applicable industrialand commercialtemperature ranges. Output voltagecan be set to anyvalue between VREF (1.24 V)and 6 V with twoexternal resistors (see Figure20). These devicesoperate from a.

XB431 Datasheet (582.46 KB)

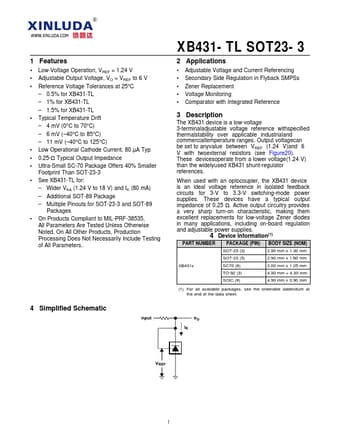

Preview of XB431 PDF

Datasheet Details

Part number:

XB431

Manufacturer:

XINLUDA

File Size:

582.46 KB

Description:

Low-voltage 3-terminaladjustable voltage reference.
