XL33290 Datasheet - XINLUDA

XL33290 - ISO K-Line Serial Link Interface

XL33290 SOP8 ISO K Line Serial Link Interface The 33290 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications.

It is designed to interface between the vehicle’s on-board microcontroller and systems off-board the vehicle via the special ISO K line.

The 33290 is designed to meet the Diagnostic Systems ISO9141 specification.

The device’s K line bus driver’s output is fully protected against bus shorts an

XL33290 Features

* Operates Over Wide Supply Voltage of 8.0 to 18V

* Operating Temperature of -40 to 125°C

* Interfaces Directly to Standard CMOS Microprocessors

* ISO K Line Pin Protected Against Shorts to Ground

* Thermal Shutdown with Hysteresis

* ISO K Line Pin Cap

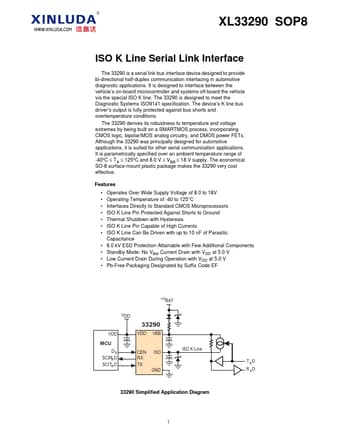

XL33290-XINLUDA.pdf
