MBR2045CT, MBR2020CT Surface Mount Schottky Barrie Rectifier

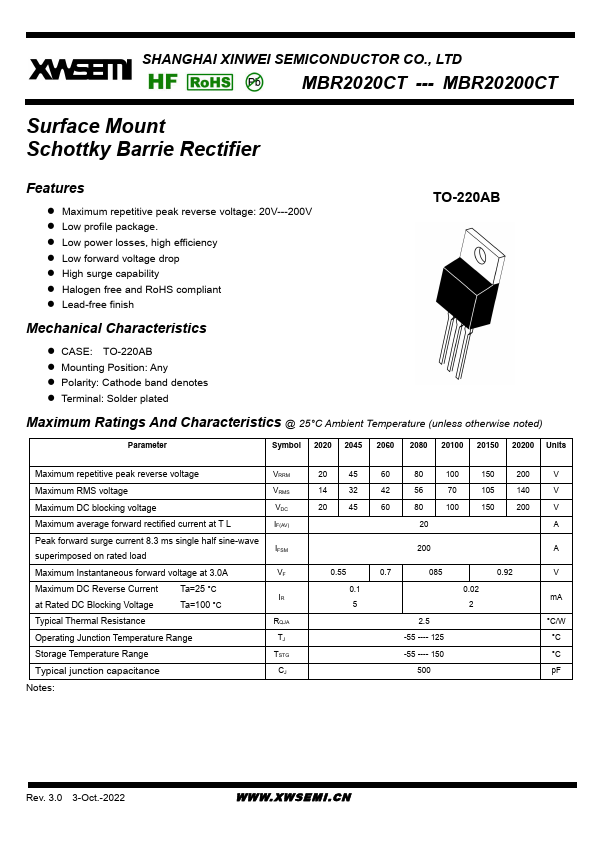

📥 Download Datasheet Datasheet Preview Page 1

Description

SHANGHAI XINWEI SEMICONDUCTOR CO., LTD MBR2020CT *- MBR20200CT Surface Mount Schottky Barrie Rectifier .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2045CT, MBR2020CT. Please refer to the document for exact specifications by model.

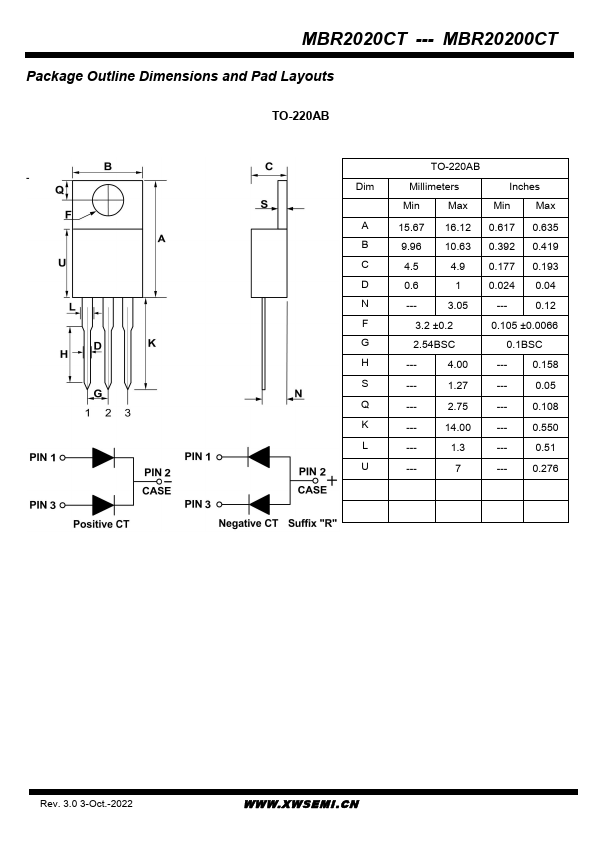

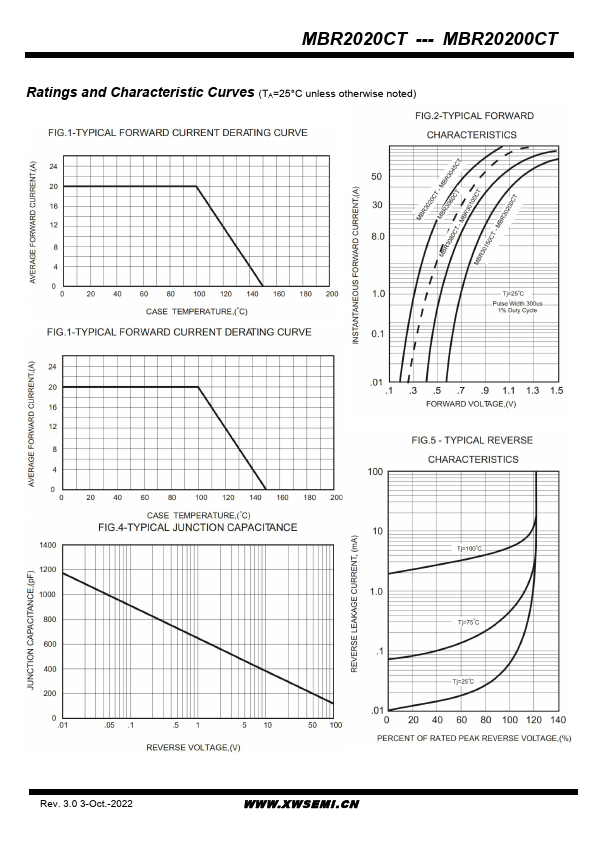

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR2045CT, MBR2020CT
Manufacturer
XINWEI
File Size
753.84 KB
Datasheet
MBR2020CT-XINWEI.pdf
Description
Surface Mount Schottky Barrie Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR2045CT, MBR2020CT.
Please refer to the document for exact specifications by model.

Features

* Maximum repetitive peak reverse voltage: 20V
* -200V
* Low profile package.
* Low power losses, high efficiency
* Low forward voltage drop
* High surge capability
* Halogen free and RoHS compliant
* Lead-free finish TO-220AB Mechanical Characteristics
* CASE
