XL1509 Datasheet, converter equivalent, XLSEMI

XL1509 Features

• Converter
• Wide 4.5V to 40V Input Voltage Range
• 3.3V,5V,12V, and adjustable versions
• Output Adjustable from 1.23V to 37V
• Maximum Duty Cycle 100%
• M

PDF File Details

Part number:

XL1509

Manufacturer:

XLSEMI

File Size:

268.03kb

Download:

📄 Datasheet

Description:

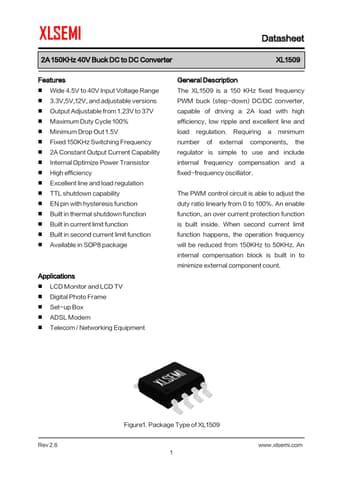

2a 150khz 40v buck dc to dc converter. The XL1509 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low

XL1509 Application

• Applications
• LCD Monitor and LCD TV
• Digital Photo Frame
• Set-up Box
• ADSL Modem
• Telecom / Networking
