XL2006 - 3A 160KHz 32V Buck DC/DC Converter

XL2006 Description

Datasheet 3A 160KHz 32V Buck DC/DC Converter With CV/CC Loop .
The XL2006 is a 160 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excell.

XL2006 Features

* n n n n n n n n n n n n n n n n Wide 8V to 32V Input Voltage Range Output Adjustable from 0.8V to 26V Minimum Drop Out 0.3V Fixed 160KHz Switching Frequency Maximum 3A Output Current Capability Internal Optimize Power MOSFET Excellent line and load regulation High efficiency up to 92% TTL shutdown c

XL2006 Applications

* n n Car Charger Battery Charger w` m Û y R

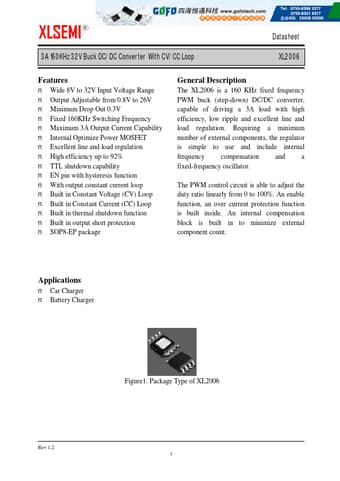

* Ñ w . g w w te o f o om c . ch Figure1. Package Type of XL2006 Rev 1.2 1 Datasheet 3A 160KHz 32V Buck DC/DC Converter With CV/CC Loop Pin Configurations NC VIN SW GND OCSET EN NC FB XL2006 1 2 XL2006 3 4 8 7 6 5 The Exposed PAD is SW

📥 Download Datasheet

Preview of XL2006 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XL2006
Manufacturer
XLSEMI
File Size
238.10 KB
Datasheet
XL2006-XLSEMI.pdf
Description
3A 160KHz 32V Buck DC/DC Converter
