XR4614B N-Ch and P-Ch Fast Switching MOSFETs

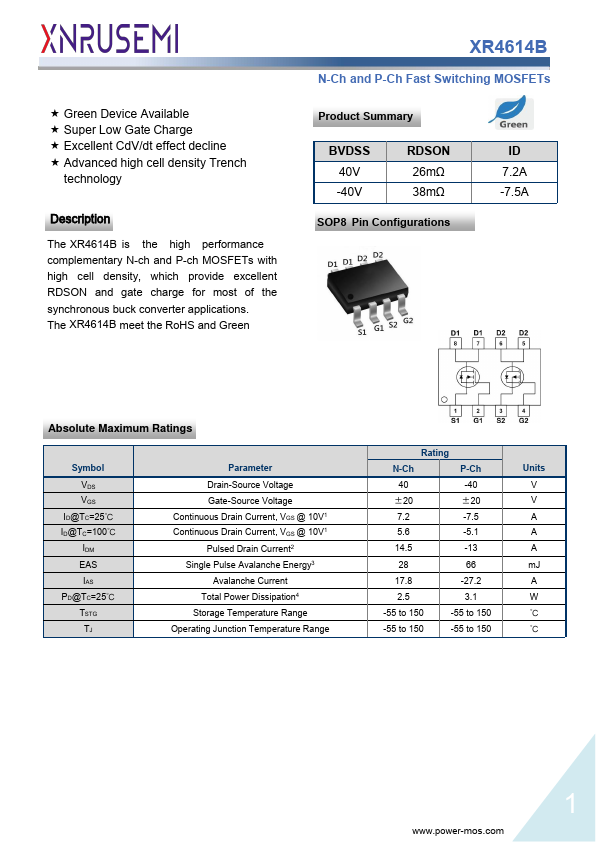

📥 Download Datasheet Datasheet Preview Page 1

Description

* Green Device Available * Super Low Gate Charge * Excellent CdV/dt effect decline * Advanced high cell density Trench technology Desc.
The XR4614B is the high performance complementary N-ch and P-ch MOSFETs with high cell density, which provide excellent RDSON and gate charge for most.

📥 Download Datasheet

Preview of XR4614B PDF

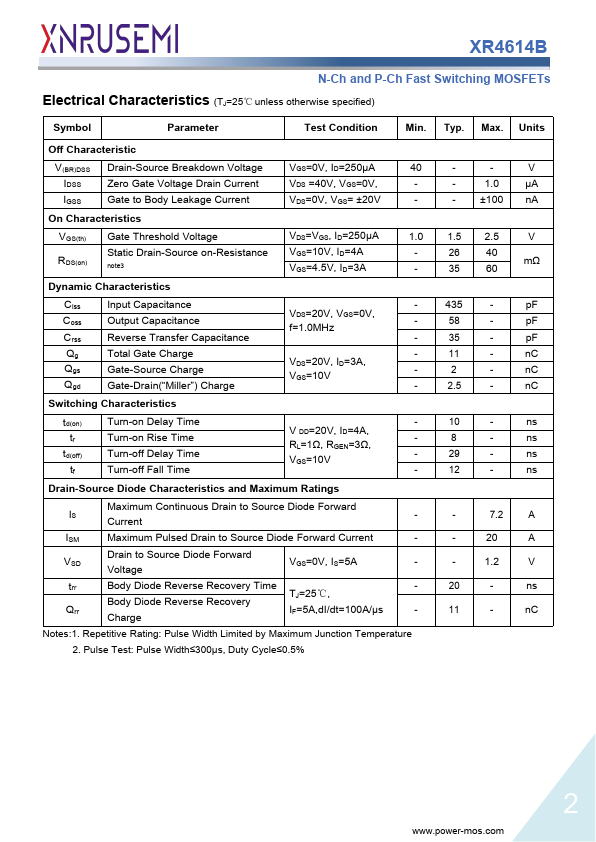

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XR4614B
Manufacturer
XNRUSEMI
File Size
421.68 KB
Datasheet
XR4614B-XNRUSEMI.pdf
Description
N-Ch and P-Ch Fast Switching MOSFETs

Applications

* The XR4614B meet the RoHS and Green XR4614B N-Ch and P-Ch Fast Switching MOSFETs Product Summary BVDSS 40V -40V RDSON 26mΩ 38mΩ SOP8 Pin Configurations ID 7.2A -7.5A Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM EAS IAS PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Ga
