IES0105S05, IES0105S03 Datasheet - XP Power

IES0105S05 DC-DC Converter

IES01 Series DC-DC Converter 1 Watt Single unregulated output xxx Series ±10% input range SMD DIP8 package 1.5kVDC isolation, 3kVDC option Industry standard pinout UL62368-1 safety approvals Continuous short circuit protection Tape & reel package available Operating temperature -40°C to +105°C Full load to 100°C 3 year warranty The single output IES01 series is an ideal solution for iso.

IES0105S03-XPPower.pdf

This datasheet PDF includes multiple part numbers: IES0105S05, IES0105S03. Please refer to the document for exact specifications by model.

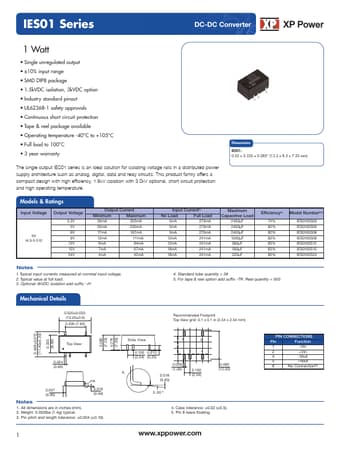

IES0105S05 Datasheet Preview Page 2 IES0105S05 Datasheet Preview Page 3

Datasheet Details

Part number:

IES0105S05, IES0105S03

Manufacturer:

XP Power

File Size:

514.57 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: IES0105S05, IES0105S03.
Please refer to the document for exact specifications by model.
