ISE0506A DC-DC Converter

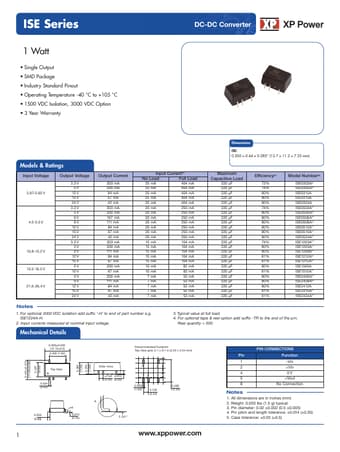

ISE Series 1 Watt xxxSingle Output Series SMD Package Industry Standard Pinout Operating Temperature -40 °C to +105 °C 1500 VDC Isolation, 3000 VDC Option 3 Year Warranty DC-DC Converter Models & Ratings Input Voltage 2.97-3.63 V 4.5-5.5 V 10.8-13.2 V 13.5-16.5 V 21.6-26.4 V Output Voltage 3.3 V 5V 12 V 15 V 24 V 3.3 V 5V 6V 9V 12 V 15 V 24 V 3.3 V 5V 9V 12 V 15 V 5V 15 V 5V 9V 12 V 15 V 24 V Output Current 303 mA 200 mA 84 mA 67 m.

ISE0506A Datasheet (389.94 KB)
