ISR2412A, ISR1205A Datasheet - XP Power

ISR2412A DC-DC Converter

ISR Series DC-DC Converter 3 Watt xxxSingle Output Series Wide Range 2:1 Input SMD Package Industry Standard Pinout Regulated Output Operating Temperature -40 °C to +95 °C 1500 VDC Isolation, 3000 VDC Option 3 Year Warranty Models & Ratings Input Voltage 9-18 18-36 36-75 Output Voltage 5V 12 V 15 V 5V 12 V 15 V 5V 12 V 15 V Output Current 600 mA 250 mA 200 mA 600 mA 250 mA 200 mA 600 mA 250 mA 200 mA Notes 1. .

ISR1205A-XPPower.pdf

This datasheet PDF includes multiple part numbers: ISR2412A, ISR1205A. Please refer to the document for exact specifications by model.

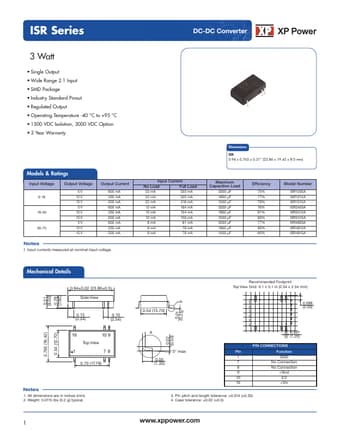

ISR2412A Datasheet Preview Page 2 ISR2412A Datasheet Preview Page 3

Datasheet Details

Part number:

ISR2412A, ISR1205A

Manufacturer:

XP Power

File Size:

350.92 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: ISR2412A, ISR1205A.
Please refer to the document for exact specifications by model.
