IST0515A Datasheet - XP Power

IST0515A DC-DC Converter

DC-DC 2 Watts IST Series xppower.com Single Output SMD Package Industry Standard Pinout 1000 VDC Isolation MTBF >3.5 MHrs -40 °C to +85 °C Operation 3 Year Warranty Specification Input Input Voltage Output Voltage Output Current Efficiency (typ) Model Number(1) Input Voltage Range Input Reverse Voltage Protection Nominal ±10% None 5 VDC 24 VDC 15.0 V 5.0 V 12.0 V 133 mA 400 mA 167 mA 79% 78% 80% .

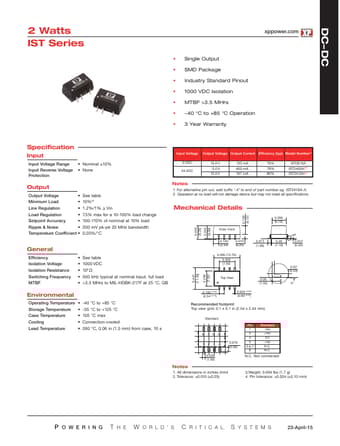

IST0515A-XPPower.pdf

IST0515A Datasheet Preview — Preview of IST0515A PDF

Datasheet Details

Part number:

IST0515A

Manufacturer:

XP Power

File Size:

202.91 KB

Description:

Dc-dc converter.
