QHL750300S28, QHL750300S12 Datasheet - XP Power

QHL750300S28 DC-DC Converter

QHL750 Series DC-DC Converter 750 Watts xxx Series 200 - 425 VDC Input Range Single Output Industry Standard Full Brick -40 °C to +85 °C Operation 3000 VAC Isolation Output Trim -40% to +10% Remote On/Off Current Share and Power Good Signals 3 Year Warranty Dimensions: QHL750: 4.6 x 2.4 x 0.5” (116.8 x 61.0 x 12.7 mm) Models & Ratings Input Voltage 200-425 V Output Voltage 12 V 15 V 24 V 28 V 48 V Out.

QHL750300S12-XPPower.pdf

This datasheet PDF includes multiple part numbers: QHL750300S28, QHL750300S12. Please refer to the document for exact specifications by model.

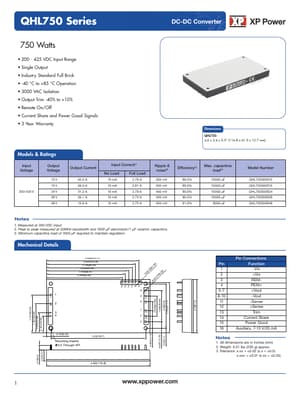

QHL750300S28 Datasheet Preview Page 2 QHL750300S28 Datasheet Preview Page 3

Datasheet Details

Part number:

QHL750300S28, QHL750300S12

Manufacturer:

XP Power

File Size:

673.22 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: QHL750300S28, QHL750300S12.
Please refer to the document for exact specifications by model.
