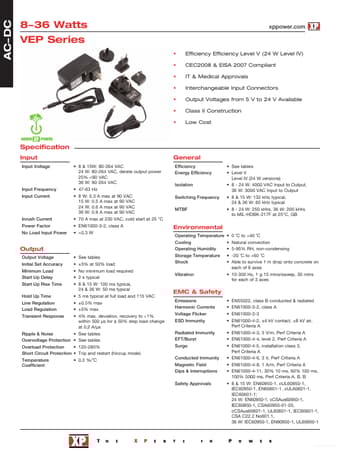

VEP24US09 Datasheet - XP

VEP24US09 836 Watts AC-DC

AC DC 8 36 Watts VEP Series xppower.com Efficiency Efficiency Level V (24 W Level IV) CEC2008 & EISA 2007 Compliant IT & Medical Approvals Interchangeable Input Connectors Output Voltages from 5 V to 24 V Available Class II Construction Low Cost Specification Input Input Voltage 8 & 15W: 80-264 VAC 24 W: 80-264 VAC, derate output power 25% <90 VAC 36 W: 90-264 VAC 47-63 Hz 8 W: 0.3 A max at 90.

VEP24US09 Datasheet (220.14 KB)
