AM1008

Buck DC/DC Regulator

AM1008 Features

* Synchronous rectification: Up to 95% efficiency Single inductor Fixed frequency operation with battery voltages above, below or equal to the output :Quiescent current 300µA Up to 600mA continuous output current 1.8V to 5.5V input and output voltage range Programmable oscillator frequency from 350kHz

AM1008 General Description

The HAMX810018 is high efficiency, fixed frequency, Buck-Boost DC/DC converters which operates from input voltages above, below or equal to the output voltage. The devices are suitable for single lithium-ion, multicell alkaline or NiMH applications where the output voltage is within the battery volt.

AM1008 Datasheet (222.85 KB)

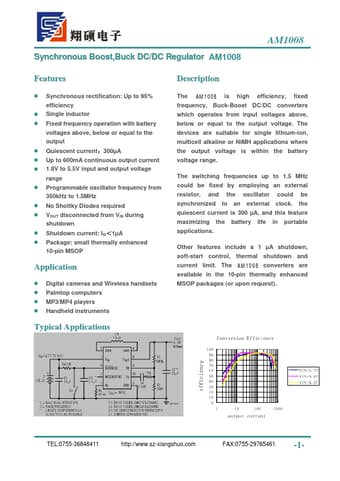

Preview of AM1008 PDF

Datasheet Details

Part number:

AM1008

Manufacturer:

XiangShuo

File Size:

222.85 KB

Description:

Buck dc/dc regulator.
