X24164 Serial E2PROM

Xicor

Description

XPr2e4li1m6in4ary Information 16K X24164 Serial E2PROM 2048 x 8 Bit .
The X24164 is a CMOS 16,384 bit serial E2PROM, internally organized 2048 x 8.

📥 Download Datasheet

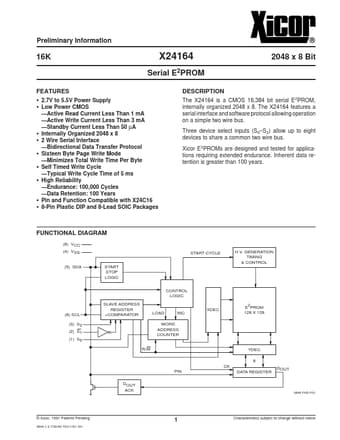

X24164 Datasheet Preview — Preview of X24164 PDF

Datasheet Specifications

Part number: X24164
Manufacturer: Xicor
File Size: 60.04 KB
Datasheet: X24164_XicorInc..pdf
Description: Serial E2PROM

Features

* 2.7V to 5.5V Power Supply
* Low Power CMOS
* Active Read Current Less Than 1 mA
* Active Write Current Less Than 3 mA
* Standby Current Less Than 50 µA
* Internally Organized 2048 x 8
* 2 Wire Serial Interface
* Bidirectional Data Transfe

Applications

* requiring extended endurance. Inherent data retention is greater than 100 years. FUNCTIONAL DIAGRAM (8) VCC (4) VSS (5) SDA START STOP LOGIC START CYCLE H. V. GENERATION TIMING & CONTROL (6) SCL (3) S2 (2) S1 (1) S0 SLAVE ADDRESS REGISTER +COMPARATOR CONTROL LOGIC LOAD INC WORD ADDRESS COU
