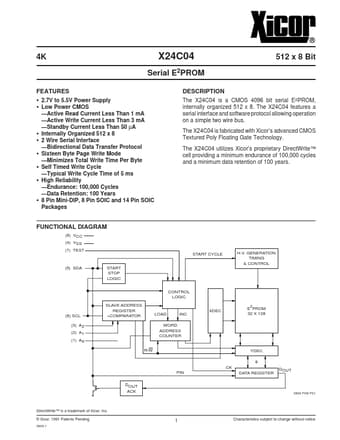

X24C04
FEATURES
DESCRIPTION
The X24C04 is a CMOS 4096 bit serial E2PROM, internally organized 512 x 8. The X24C04 features a serial interface and software protocol allowing operation on a simple two wire bus. The X24C04 is fabricated with Xicor’s advanced CMOS Textured Poly Floating Gate Technology. The X24C04 utilizes Xicor’s proprietary Direct Write™ cell providing a minimum endurance of 100,000 cycles and a minimum data retention of 100 years.
- -
- -
- -
- -
2.7V to 5.5V Power Supply Low Power CMOS
- Active Read Current Less Than 1 m A
- Active Write Current Less Than 3 m A
- Standby Current Less Than 50 µA Internally Organized 512 x 8 2 Wire Serial Interface
- Bidirectional Data Transfer Protocol Sixteen Byte Page Write Mode
- Minimizes Total Write Time Per Byte Self Timed Write Cycle
- Typical Write Cycle Time of 5 ms High Reliability
- Endurance: 100,000 Cycles
- Data Retention: 100 Years 8 Pin Mini-DIP, 8 Pin SOIC and 14 Pin SOIC Packages
FUNCTIONAL DIAGRAM
(8) VCC (4) VSS (7) TEST START...
